BSSH-109-D-12-H-LF Major League Electronics Order From Hard Find Electronics

Electronic Components

At Hard Find Electronics Tech, we source hard-to-find electronic components and manage supply, cost reduction, excess inventory management, and more.

Major League Electronics

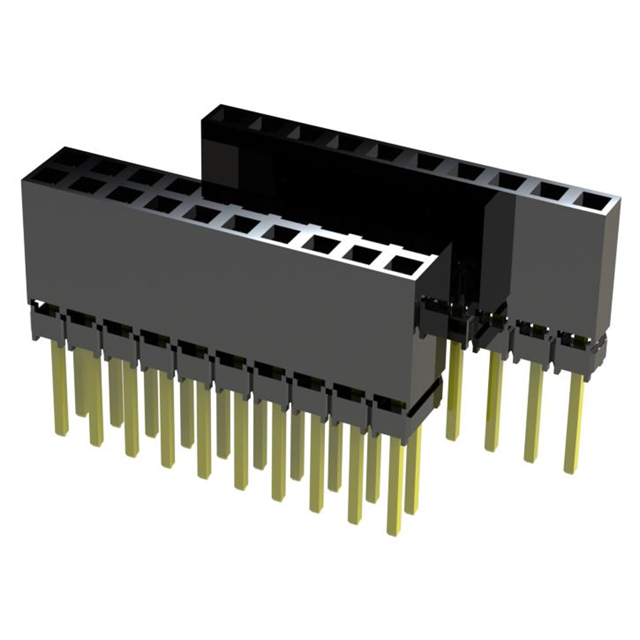

BSSH-109-D-12-H-LF
Connectors, Interconnects
.100 Socket
BSSH-109-D-12-H-LF Datasheet

Cost
Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerMajor League Electronics
CategoryConnectors, Interconnects
PackagesBag
Standard Quantity1
Description18 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Connector TypeReceptacle
Current Rating (Amps)3A
Mounting TypeThrough Hole
Number of Positions18
StyleBoard to Board
Operating Temperature-40°C ~ 105°C
Contact TypeForked
Fastening TypePush-Pull
Number of Positions LoadedAll
TerminationSolder
Contact MaterialPhosphor Bronze
Insulation ColorBlack
Pitch - Mating0.100" (2.54mm)
Contact Finish - MatingGold
Contact Finish Thickness - Mating3.00µin (0.076µm)
Contact Finish - PostTin
Contact ShapeSquare
Contact Length - Post0.090" (2.29mm)
Insulation Height0.635" (16.13mm)
Insulation MaterialPolyamide (PA6T), Nylon 6T
Row Spacing - Mating0.100" (2.54mm)
Number of Rows2

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new BSSH-109-D-12-H-LF from Major League Electronics only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide

RFQ

Source at least two reliable suppliers
QUOTE

Information checking available/price/condition
QC PROCESS

3-Step Quality Control and Professional Third-Party Test
SHIPMENT

FedEx, DHL, UPS, TNT

In Stock: 1,200

Please send an RFQ for instant price and inventory.

Fast Shipping

QUANTITY

Multiples of 1
