  • Maxim Integrated / Analog Devices

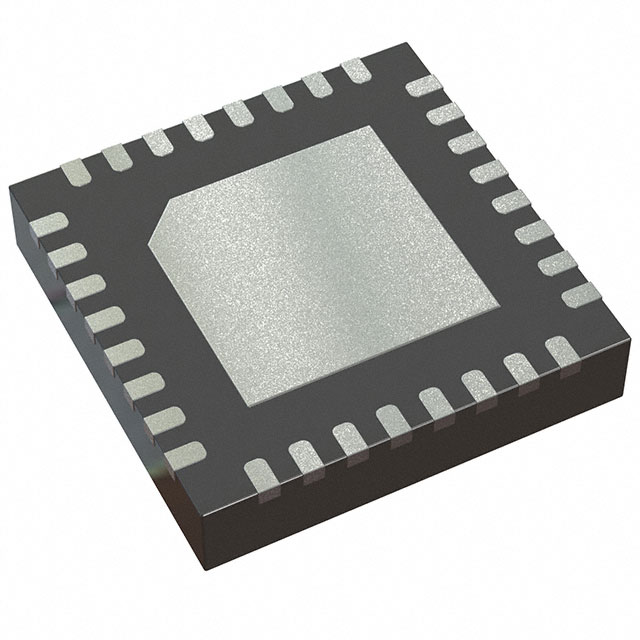

  • TMC2240ATJ+
  • Integrated Circuits (ICs)
  • 36V 2ARMS+ STEPPER CTRLR TQFN
  •  TMC2240ATJ+ Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerMaxim Integrated / Analog Devices
  • CategoryIntegrated Circuits (ICs)
  • PackagesTray
  • Standard Quantity490
  • DescriptionBipolar Motor Driver Power MOSFET SPI, UART 32-TQFN (5x5)
  • Package / Case32-WFQFN Exposed Pad
  • Mounting TypeSurface Mount
  • FunctionDriver - Fully Integrated, Control and Power Stage
  • Current - Output5A
  • InterfaceSPI, UART
  • Operating Temperature-40°C ~ 125°C
  • Output ConfigurationHalf Bridge (4)
  • Voltage - Supply4.5V ~ 36V
  • ApplicationsPrinter
  • TechnologyPower MOSFET
  • Voltage - Load4.5V ~ 36V
  • Supplier Device Package32-TQFN (5x5)
  • Motor Type - StepperBipolar
  • Motor Type - AC, DCBrushed DC
  • Step Resolution>256 Microsteps

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new TMC2240ATJ+ from Maxim Integrated / Analog Devices only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,962
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
