  • Maxim Integrated / Analog Devices
  • MAX22420FASA+T
  • Isolators
  • 4-CHANNEL, ULTRA-LOW POWER DIGIT
  •  MAX22420FASA+T Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerMaxim Integrated / Analog Devices
  • CategoryIsolators
  • PackagesTape & Reel (TR)
  • Standard Quantity2500
  • DescriptionSPI Digital Isolator 3000Vrms 2 Channel 10Mbps 200kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)

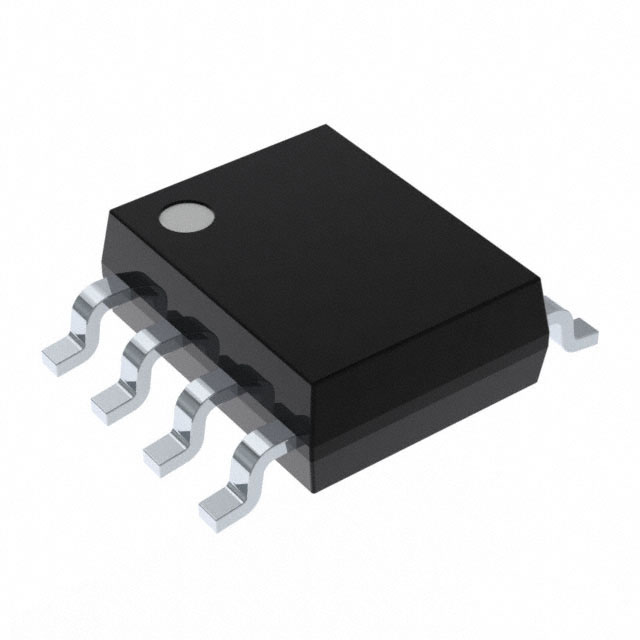

  • Package / Case8-SOIC (0.154", 3.90mm Width)
  • Mounting TypeSurface Mount
  • TypeSPI
  • Operating Temperature-40°C ~ 125°C
  • Voltage - Supply1.71V ~ 5.5V
  • Data Rate10Mbps
  • TechnologyCapacitive Coupling
  • Voltage - Isolation3000Vrms
  • Inputs - Side 1/Side 22/0
  • Supplier Device Package8-SOIC
  • Rise / Fall Time (Typ)5ns, 5ns (Max)
  • Common Mode Transient Immunity (Min)200kV/µs
  • Propagation Delay tpLH / tpHL (Max)61ns, 61ns
  • Isolated PowerYes
  • Channel TypeUnidirectional
  • Pulse Width Distortion (Max)6ns
  • Number of Channels2

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MAX22420FASA+T from Maxim Integrated / Analog Devices only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
