  • Maxim Integrated / Analog Devices
  • MAX14942GWE+T
  • Isolators
  • DGTL ISO 5000VRMS RS485 16SOIC
  •  MAX14942GWE+T Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerMaxim Integrated / Analog Devices
  • CategoryIsolators
  • PackagesTape & Reel (TR)
  • Standard Quantity1000
  • DescriptionRS485 Digital Isolator 5000Vrms 3 Channel 20Mbps 35kV/µs (Typ) CMTI 16-SOIC (0.295", 7.50mm Width)

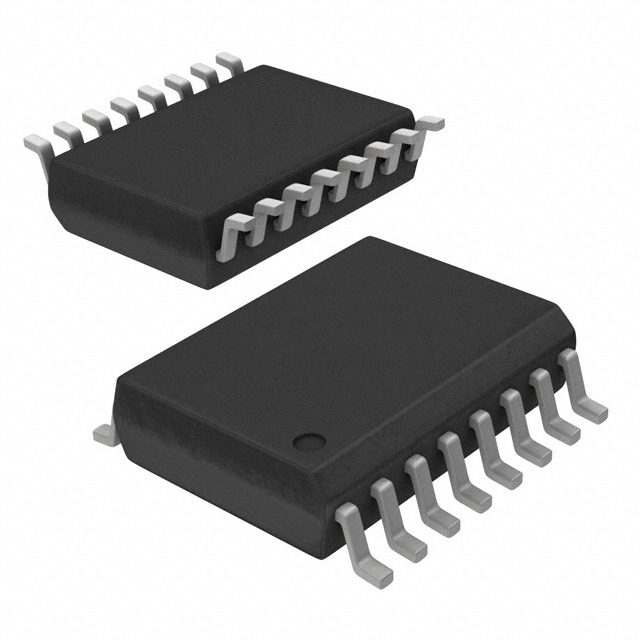

  • Package / Case16-SOIC (0.295", 7.50mm Width)
  • Mounting TypeSurface Mount
  • TypeRS485
  • Operating Temperature-40°C ~ 105°C
  • Voltage - Supply1.71V ~ 5.5V, 4.5V ~ 5.5V
  • Data Rate20Mbps
  • TechnologyCapacitive Coupling
  • Voltage - Isolation5000Vrms
  • Inputs - Side 1/Side 22/1
  • Supplier Device Package16-SOIC
  • Rise / Fall Time (Typ)15ns, 15ns (Max)
  • Common Mode Transient Immunity (Min)35kV/µs (Typ)
  • Propagation Delay tpLH / tpHL (Max)68ns, 68ns
  • Isolated PowerNo
  • Channel TypeUnidirectional
  • Number of Channels3

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MAX14942GWE+T from Maxim Integrated / Analog Devices only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 937
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
