  • Micro Commercial Components (MCC)

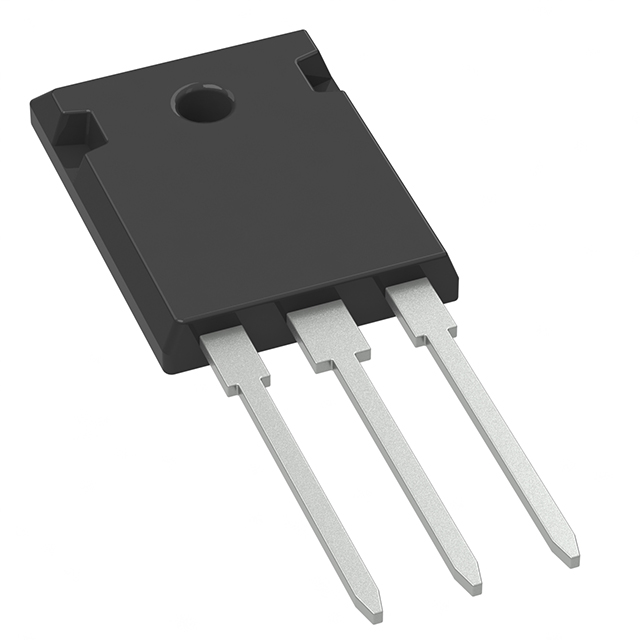

  • MIW40N65-BP
  • Discrete Semiconductor Products
  • IGBT 650V 40A TO-247
  •  MIW40N65-BP Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerMicro Commercial Components (MCC)
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity30
  • DescriptionIGBT Trench Field Stop 650 V 80 A 280 W Through Hole TO-247-3
  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)41 ns
  • Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 40A
  • Supplier Device PackageTO-247-3
  • IGBT TypeTrench Field Stop
  • Td (on/off) @ 25°C62ns/265ns
  • Switching Energy3.3mJ (on), 1.4mJ (off)
  • Test Condition600V, 40A, 10Ohm, 15V
  • Gate Charge165 nC
  • Current - Collector (Ic) (Max)80 A
  • Voltage - Collector Emitter Breakdown (Max)650 V
  • Current - Collector Pulsed (Icm)120 A
  • Power - Max280 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MIW40N65-BP from Micro Commercial Components (MCC) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 305
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
