• Micro Commercial Components (MCC)
• MSJB17N80-TP
• Discrete Semiconductor Products

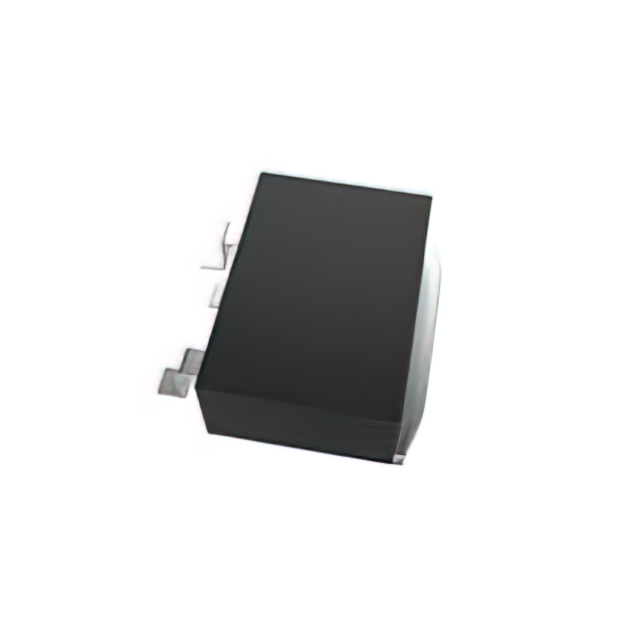

• N-CHANNEL MOSFET, D2-PAK
•  MSJB17N80-TP Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerMicro Commercial Components (MCC)
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity800
• DescriptionN-Channel 800 V 17A (Tc) 181W Surface Mount D2PAK
• Package / CaseTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C17A (Tc)
• Rds On (Max) @ Id, Vgs290mOhm @ 11A, 10V
• Power Dissipation (Max)181W
• Vgs(th) (Max) @ Id4V @ 250µA
• Supplier Device PackageD2PAK
• Drive Voltage (Max Rds On, Min Rds On)10V
• Vgs (Max)±30V
• Drain to Source Voltage (Vdss)800 V
• Gate Charge (Qg) (Max) @ Vgs56 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds1830 pF @ 25 V
