  • Micro Commercial Components (MCC)

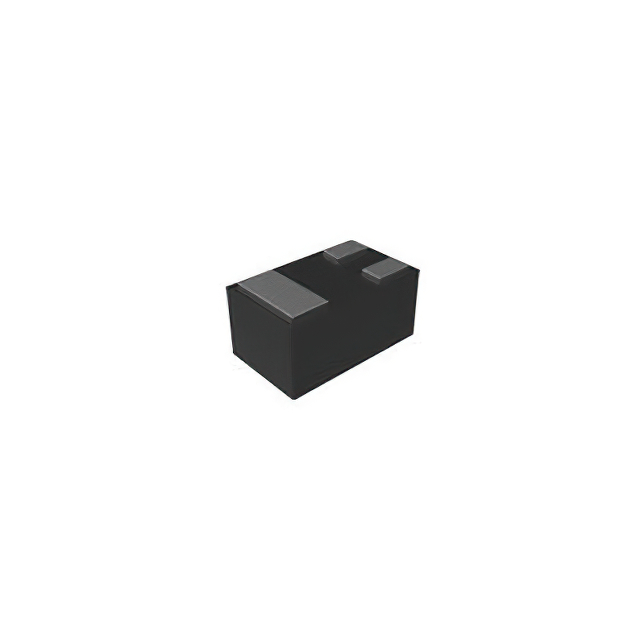

  • 2N7002KL3-TP
  • Discrete Semiconductor Products
  • N-CHANNEL MOSFET DFN1006-3
  •  2N7002KL3-TP Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerMicro Commercial Components (MCC)
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity10000
  • DescriptionN-Channel 60 V 410mA (Ta) 100mW Surface Mount DFN1006-3
  • Package / CaseSC-101, SOT-883
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C410mA (Ta)
  • Rds On (Max) @ Id, Vgs1.5Ohm @ 40mA, 10V
  • Power Dissipation (Max)100mW
  • Vgs(th) (Max) @ Id2.3V @ 250µA
  • Supplier Device PackageDFN1006-3
  • Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)60 V
  • Gate Charge (Qg) (Max) @ Vgs2.8 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds80 pF @ 40 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 2N7002KL3-TP from Micro Commercial Components (MCC) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 5,240
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
