Product Specifications
  • AttributesAttribute Value
  • ManufacturerMicro Commercial Components (MCC)
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity1

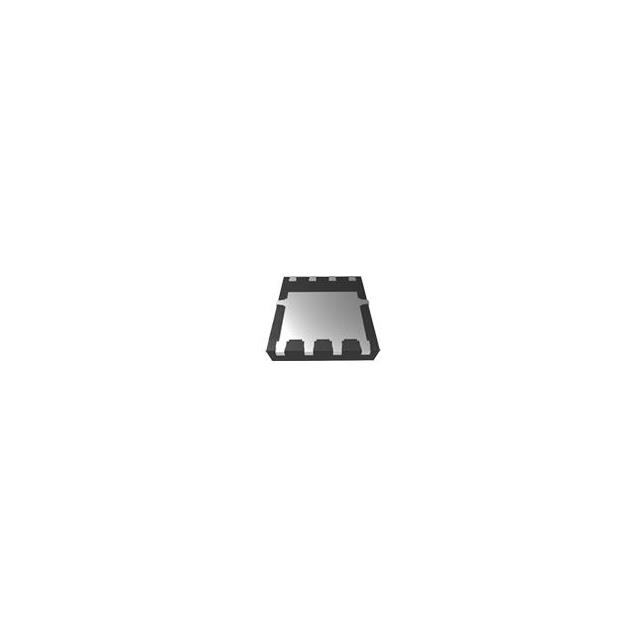

  • DescriptionN-Channel 100 V 120A 108W Surface Mount DFN5060
  • Package / Case8-PowerTDFN
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C120A
  • Rds On (Max) @ Id, Vgs4.2mOhm @ 60A, 10V
  • Power Dissipation (Max)108W
  • Vgs(th) (Max) @ Id4V @ 250µA
  • Supplier Device PackageDFN5060
  • Drive Voltage (Max Rds On, Min Rds On)10V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)100 V
  • Gate Charge (Qg) (Max) @ Vgs70 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds4400 pF @ 50 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MCACL120N10Y-TP from Micro Commercial Components (MCC) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
