Product Specifications
  • AttributesAttribute Value
  • ManufacturerMicro Commercial Components (MCC)
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3000

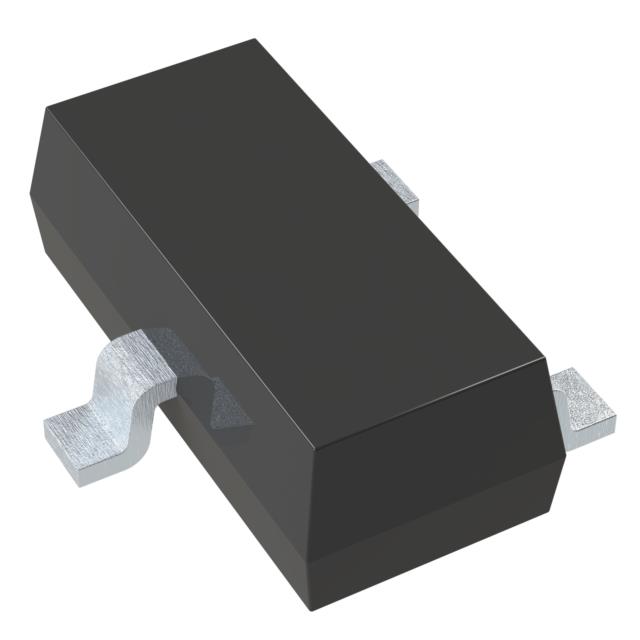

  • DescriptionDiode Array 1 Pair Common Cathode 70 V 70mA Surface Mount SC-70, SOT-323
  • Package / CaseSC-70, SOT-323
  • Mounting TypeSurface Mount
  • SpeedSmall Signal =< 200mA (Io), Any Speed
  • Reverse Recovery Time (trr)5 ns
  • TechnologySchottky
  • Diode Configuration1 Pair Common Cathode
  • Current - Average Rectified (Io) (per Diode)70mA
  • Supplier Device PackageSOT-323
  • Operating Temperature - Junction-55°C ~ 125°C
  • GradeAutomotive
  • Voltage - DC Reverse (Vr) (Max)70 V
  • Voltage - Forward (Vf) (Max) @ If1 V @ 15 mA
  • Current - Reverse Leakage @ Vr200 nA @ 50 V
  • QualificationAEC-Q101

VIEW ALL
