  • Micro Commercial Components (MCC)
  • BAV99DW-TP
  • Discrete Semiconductor Products
  • DIODE ARRAY GP 75V 150MA SOT363
  •  BAV99DW-TP Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerMicro Commercial Components (MCC)
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionDiode Array 2 Pair Series Connection 75 V 150mA Surface Mount 6-TSSOP, SC-88, SOT-363

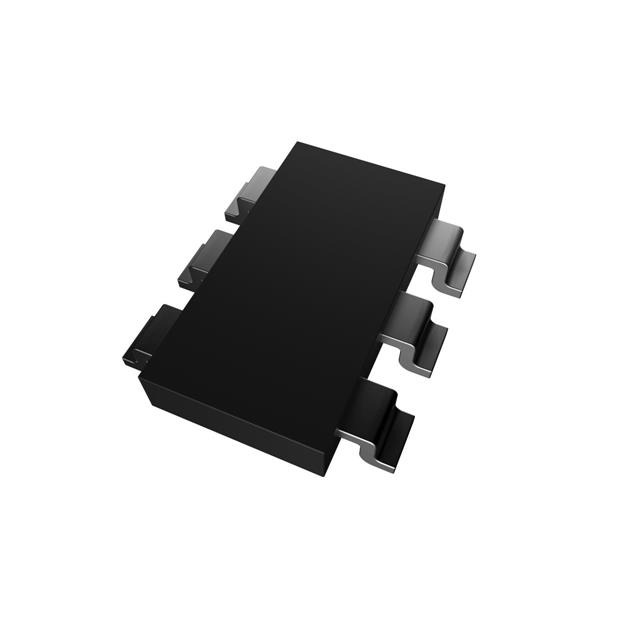

  • Package / Case6-TSSOP, SC-88, SOT-363
  • Mounting TypeSurface Mount
  • SpeedSmall Signal =< 200mA (Io), Any Speed
  • Reverse Recovery Time (trr)4 ns
  • TechnologyStandard
  • Diode Configuration2 Pair Series Connection
  • Current - Average Rectified (Io) (per Diode)150mA
  • Supplier Device PackageSOT-363
  • Operating Temperature - Junction-55°C ~ 150°C
  • Voltage - DC Reverse (Vr) (Max)75 V
  • Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
  • Current - Reverse Leakage @ Vr2.5 µA @ 75 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new BAV99DW-TP from Micro Commercial Components (MCC) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 28,962
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
