  • Microsemi Corporation
  • JAN1N6109US
  • Circuit Protection

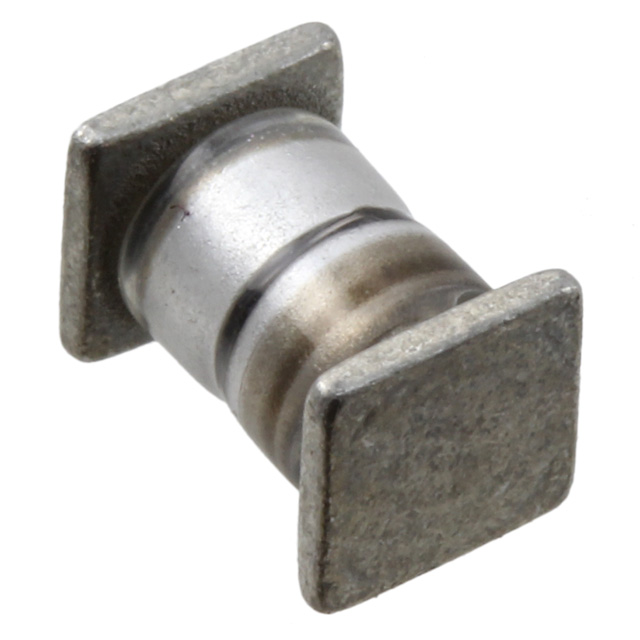

  • TVS DIODE 9.9VWM 19.11VC SQ-MELF
  •  JAN1N6109US Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerMicrosemi Corporation
  • CategoryCircuit Protection
  • PackagesBulk
  • Standard Quantity1
  • Description19.11V Clamp 26.13A Ipp Tvs Diode Surface Mount B, SQ-MELF
  • Package / CaseSQ-MELF, B
  • Mounting TypeSurface Mount
  • TypeZener
  • Operating Temperature-55°C ~ 175°C (TJ)
  • ApplicationsGeneral Purpose
  • Current - Peak Pulse (10/1000µs)26.13A
  • Voltage - Reverse Standoff (Typ)9.9V
  • Supplier Device PackageB, SQ-MELF
  • Bidirectional Channels1
  • Voltage - Breakdown (Min)11.73V
  • Voltage - Clamping (Max) @ Ipp19.11V
  • Power - Peak Pulse500W
  • Power Line ProtectionNo
  • GradeMilitary
  • QualificationMIL-PRF-19500/516

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new JAN1N6109US from Microsemi Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
