Product Specifications
  • AttributesAttribute Value
  • ManufacturerMolex
  • CategoryHeaders, Male Pins
  • PackagesTape & Reel (TR)
  • Standard Quantity1500

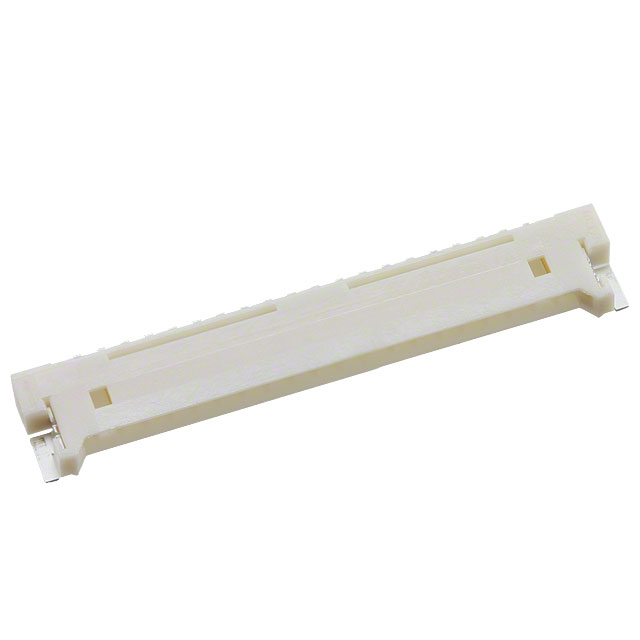

  • DescriptionConnector Header Surface Mount, Right Angle 20 position 0.049" (1.25mm)
  • FeaturesSolder Retention
  • Connector TypeHeader
  • Voltage Rating125V
  • Current Rating (Amps)Varies by Wire Gauge
  • Mounting TypeSurface Mount, Right Angle
  • Number of Positions20
  • Number of Rows1
  • StyleBoard to Cable/Wire
  • Operating Temperature-40°C ~ 85°C
  • ApplicationsAutomotive, General Purpose, Medical, Telecommunications
  • Contact TypeMale Pin
  • Fastening TypeDetent Lock
  • Number of Positions LoadedAll
  • TerminationSolder
  • Material Flammability RatingUL94 V-0
  • Contact MaterialPhosphor Bronze
  • Insulation ColorNatural
  • Pitch - Mating0.049" (1.25mm)
  • Contact Finish - MatingGold
  • Contact Finish Thickness - Mating8.00μin (0.203μm)
  • Contact Finish - PostTin
  • Contact Finish Thickness - Post118.1μin (3.00μm)
  • Contact ShapeSquare
  • Insulation Height0.073" (1.85mm)
  • ShroudingShrouded - 4 Wall
  • Insulation MaterialPolyphenylene Sulfide (PPS)
  • Contact Length - Mating0.102" (2.60mm)

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 0537802070 from Molex only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 7,102
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
