Product Specifications
  • AttributesAttribute Value
  • ManufacturerMolex
  • CategoryConnectors, Interconnects
  • PackagesTray
  • Standard Quantity960

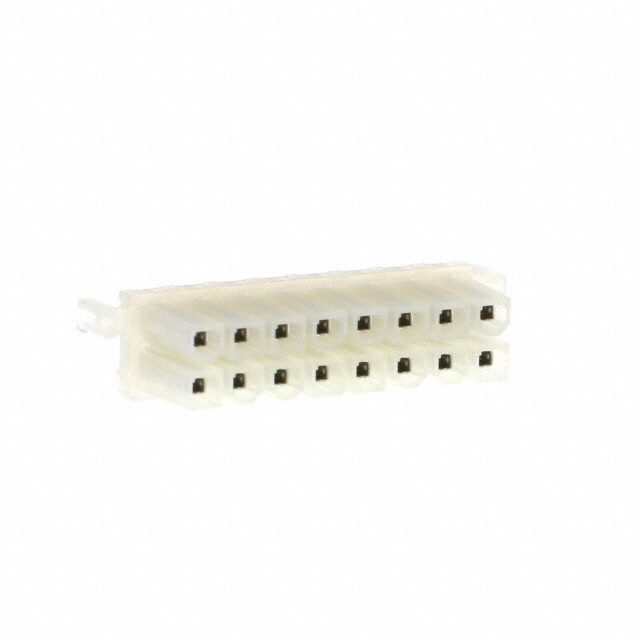

  • Description16 Position Receptacle Connector 0.165" (4.20mm) Through Hole Tin
  • FeaturesBlind Mating, Board Lock
  • Connector TypeReceptacle
  • Voltage Rating600V
  • Mounting TypeThrough Hole
  • Number of Positions16
  • StyleBoard to Board or Cable
  • Operating Temperature-40°C ~ 105°C
  • ApplicationsGeneral Purpose, Industrial, Medical, Telecommunications
  • Contact TypeFemale Socket
  • Fastening TypePush-Pull
  • Number of Positions LoadedAll
  • TerminationSolder
  • Material Flammability RatingUL94 V-2
  • Contact MaterialBrass
  • Insulation ColorNatural
  • Pitch - Mating0.165" (4.20mm)
  • Contact Finish - MatingTin
  • Contact Finish Thickness - Mating100.0µin (2.54µm)
  • Contact Finish - PostTin
  • Contact Finish Thickness - Post100.0µin (2.54µm)
  • Contact ShapeSquare
  • Contact Length - Post0.138" (3.50mm)
  • Insulation Height0.446" (11.33mm)
  • Insulation MaterialPolyamide (PA66), Nylon 6/6
  • Row Spacing - Mating0.165" (4.20mm)
  • Number of Rows2
