  • Molex
  • 0022152126
  • Connectors, Interconnects

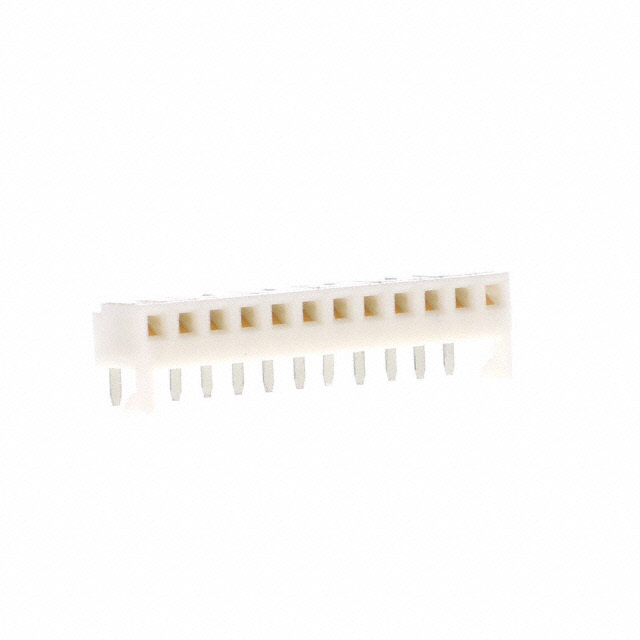

  • CONN RCPT 12POS 0.1 TIN EDGE MNT
  •  0022152126 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerMolex
  • CategoryConnectors, Interconnects
  • PackagesTray
  • Standard Quantity1
  • Description12 Position Receptacle Connector 0.100" (2.54mm) Board Edge, Through Hole, Right Angle Tin
  • FeaturesBoard Hooks
  • Connector TypeReceptacle
  • Voltage Rating250VAC
  • Current Rating (Amps)2.5A
  • Mounting TypeBoard Edge, Through Hole, Right Angle
  • Number of Positions12
  • StyleBoard to Board or Cable
  • Operating Temperature-40°C ~ 80°C
  • ApplicationsAutomotive, General Purpose, Medical, Telecommunications
  • Contact TypeNon-Gendered
  • Fastening TypePush-Pull
  • Number of Positions LoadedAll
  • TerminationSolder
  • Material Flammability RatingUL94 V-0
  • Contact MaterialBrass
  • Insulation ColorWhite
  • Pitch - Mating0.100" (2.54mm)
  • Contact Finish - MatingTin
  • Contact Finish Thickness - Mating100.0µin (2.54µm)
  • Contact Finish - PostTin
  • Contact Finish Thickness - Post100.0µin (2.54µm)
  • Contact ShapeSquare
  • Contact Length - Post0.132" (3.35mm)
  • Insulation Height0.185" (4.70mm)
  • Insulation MaterialPolyamide (PA), Nylon
  • Number of Rows1

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 0022152126 from Molex only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 3,097
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
