  • Molex
  • 0901522214
  • Connectors, Interconnects

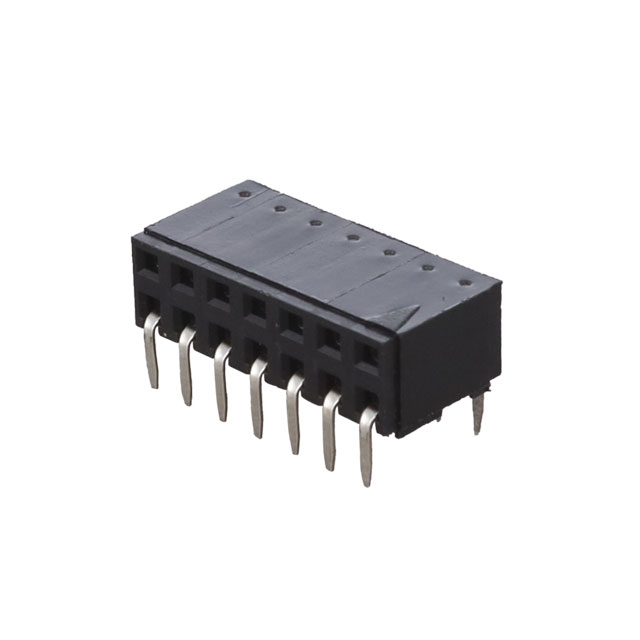

  • CONN RCPT 14POS 0.1 GOLD PCB R/A
  •  0901522214 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerMolex
  • CategoryConnectors, Interconnects
  • PackagesTube
  • Standard Quantity775
  • Description14 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
  • Connector TypeReceptacle
  • Voltage Rating350V
  • Current Rating (Amps)3A
  • Mounting TypeThrough Hole, Right Angle
  • Number of Positions14
  • StyleBoard to Board
  • Operating Temperature-55°C ~ 105°C
  • ApplicationsAutomotive, General Purpose, Lighting, Medical, Telecommunications
  • Contact TypeFemale Socket
  • Fastening TypePush-Pull
  • Number of Positions LoadedAll
  • TerminationSolder
  • Contact MaterialPhosphor Bronze
  • Insulation ColorBlack
  • Pitch - Mating0.100" (2.54mm)
  • Contact Finish - MatingGold
  • Contact Finish Thickness - Mating15.0µin (0.38µm)
  • Contact Finish - PostTin
  • Contact Finish Thickness - Post118.1µin (3.00µm)
  • Contact ShapeSquare
  • Contact Length - Post0.114" (2.90mm)
  • Insulation Height0.230" (5.85mm)
  • Insulation MaterialPolyester, Glass Filled
  • Row Spacing - Mating0.100" (2.54mm)
  • Number of Rows2

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 0901522214 from Molex only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 495
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
