  • Molex
  • 2005290090
  • Connectors, Interconnects

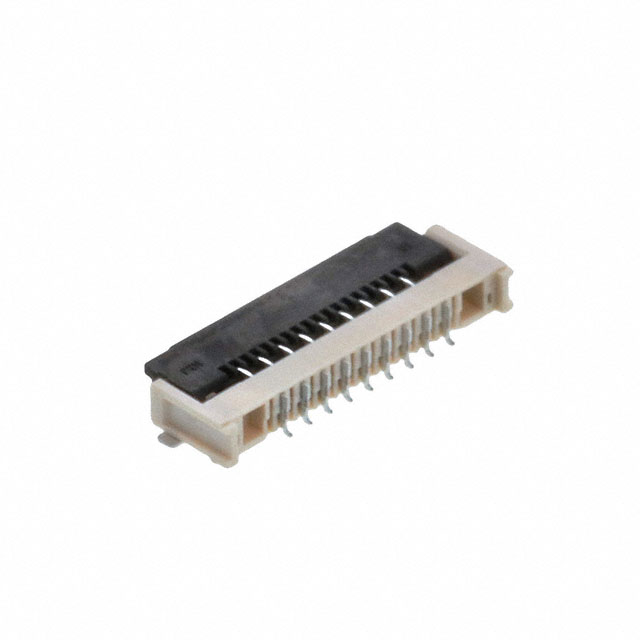

  • CONN FFC FPC BOTTOM 9POS 1MM R/A
  •  2005290090 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerMolex
  • CategoryConnectors, Interconnects
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • Description9 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
  • FeaturesSolder Retention, Zero Insertion Force (ZIF)
  • Contact FinishTin Bismuth
  • Current Rating (Amps)0.5A per Contact
  • Mounting TypeSurface Mount, Right Angle
  • Number of Positions9
  • Pitch0.039" (1.00mm)
  • Operating Temperature-40°C ~ 85°C
  • TerminationSolder
  • Height Above Board0.075" (1.90mm)
  • Contact Finish Thickness39.4µin (1.00µm)
  • Locking FeatureFlip Lock
  • Material Flammability RatingUL94 V-0
  • Actuator MaterialPolyamide (PA), Nylon, Glass Filled
  • Contact MaterialPhosphor Bronze
  • FFC, FCB Thickness0.30mm
  • Housing MaterialLiquid Crystal Polymer (LCP), Glass Filled
  • Cable End TypeStraight, Tabbed
  • Housing ColorBeige
  • Actuator ColorBlack
  • Mating Cycles25
  • Flat Flex TypeFFC, FPC
  • Connector/Contact TypeContacts, Bottom

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 2005290090 from Molex only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 571
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
