Product Specifications
  • AttributesAttribute Value
  • ManufacturerMolex
  • CategoryConnectors, Interconnects
  • PackagesTray
  • Standard Quantity1

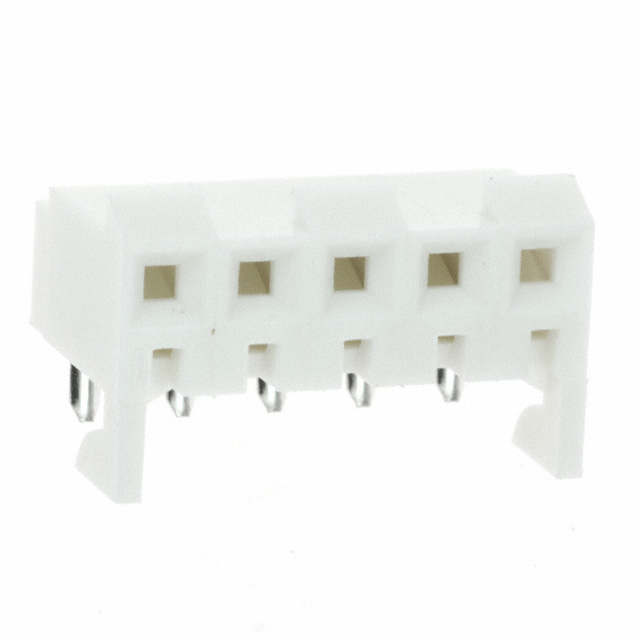

  • Description5 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin
  • FeaturesBoard Hooks
  • Connector TypeReceptacle
  • Voltage Rating600V
  • Current Rating (Amps)5A
  • Mounting TypeBoard Edge, Through Hole, Right Angle
  • Number of Positions5
  • StyleBoard to Board or Cable
  • Operating Temperature-40°C ~ 105°C
  • ApplicationsAutomotive, General Purpose, Medical, Telecommunications
  • Contact TypeFemale Socket
  • Fastening TypeLocking Ramp
  • Number of Positions LoadedAll
  • TerminationSolder
  • Material Flammability RatingUL94 V-0
  • Contact MaterialPhosphor Bronze
  • Insulation ColorNatural
  • Pitch - Mating0.156" (3.96mm)
  • Contact Finish - MatingTin
  • Contact Finish Thickness - Mating60.0µin (1.52µm)
  • Contact Finish - PostTin
  • Contact Finish Thickness - Post60.0µin (1.52µm)
  • Contact ShapeSquare
  • Contact Length - Post0.145" (3.68mm)
  • Insulation Height0.308" (7.82mm)
  • Insulation MaterialPolyester
  • Number of Rows1

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 0009481054 from Molex only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 15,354
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
