Product Specifications
  • AttributesAttribute Value
  • ManufacturerMolex
  • CategoryConnectors, Interconnects
  • PackagesTray
  • Standard Quantity693

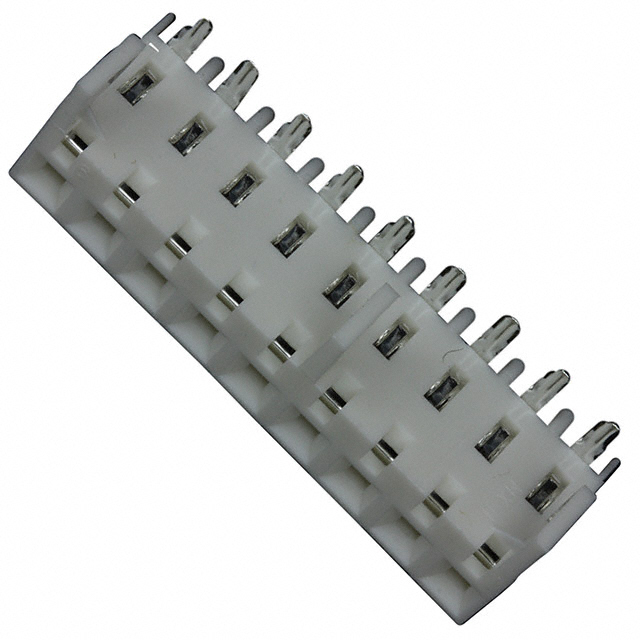

  • Description9 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin
  • FeaturesBoard Hooks
  • Connector TypeReceptacle
  • Voltage Rating600V
  • Current Rating (Amps)5A
  • Mounting TypeBoard Edge, Through Hole, Right Angle
  • Number of Positions9
  • StyleBoard to Board or Cable
  • Operating Temperature-40°C ~ 105°C
  • ApplicationsAutomotive, General Purpose, Medical, Telecommunications
  • Contact TypeFemale Socket
  • Fastening TypeLocking Ramp
  • Number of Positions LoadedAll
  • TerminationSolder
  • Material Flammability RatingUL94 V-0
  • Contact MaterialPhosphor Bronze
  • Insulation ColorNatural
  • Pitch - Mating0.156" (3.96mm)
  • Contact Finish - MatingTin
  • Contact Finish Thickness - Mating60.0µin (1.52µm)
  • Contact Finish - PostTin
  • Contact Finish Thickness - Post60.0µin (1.52µm)
  • Contact ShapeSquare
  • Contact Length - Post0.145" (3.68mm)
  • Insulation Height0.308" (7.82mm)
  • Insulation MaterialPolyester
  • Number of Rows1
