Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • National Semiconductor
  • 74S132DC
  • Integrated Circuits (ICs)
  • IC GATE NAND 4CH 2-INP 14CERDIP
  •  74S132DC Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerNational Semiconductor
  • CategoryIntegrated Circuits (ICs)
  • PackagesBulk
  • Standard Quantity370
  • DescriptionNAND Gate IC 4 Channel Schmitt Trigger 14-CERDIP
  • FeaturesSchmitt Trigger

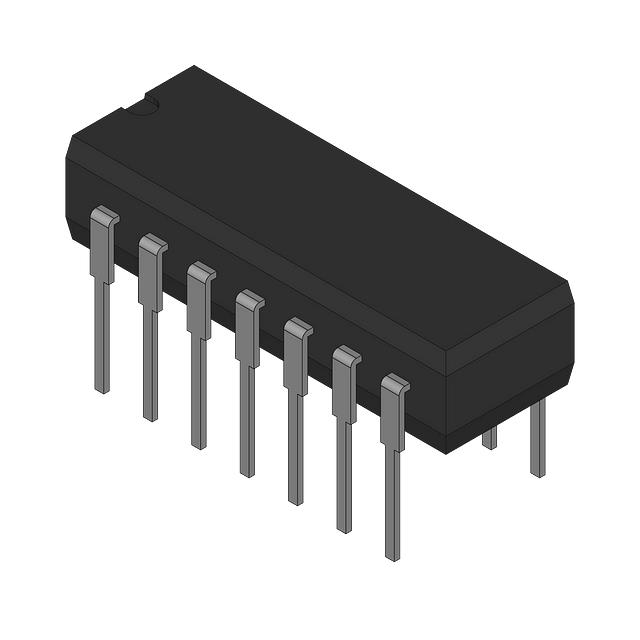

  • Package / Case14-CDIP (0.300", 7.62mm)
  • Mounting TypeThrough Hole
  • Logic TypeNAND Gate
  • Operating Temperature0°C ~ 70°C
  • Voltage - Supply4.75V ~ 5.25V
  • Current - Output High, Low1mA, 20mA
  • Number of Inputs2
  • Supplier Device Package14-CERDIP
  • Input Logic Level - High1.9V
  • Input Logic Level - Low1.4V
  • Max Propagation Delay @ V, Max CL13ns @ 5V, 15pF
  • Number of Circuits4
  • Current - Quiescent (Max)68 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 74S132DC from National Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 3,977
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
