  • Nexperia
  • PUMD15-QF
  • Discrete Semiconductor Products

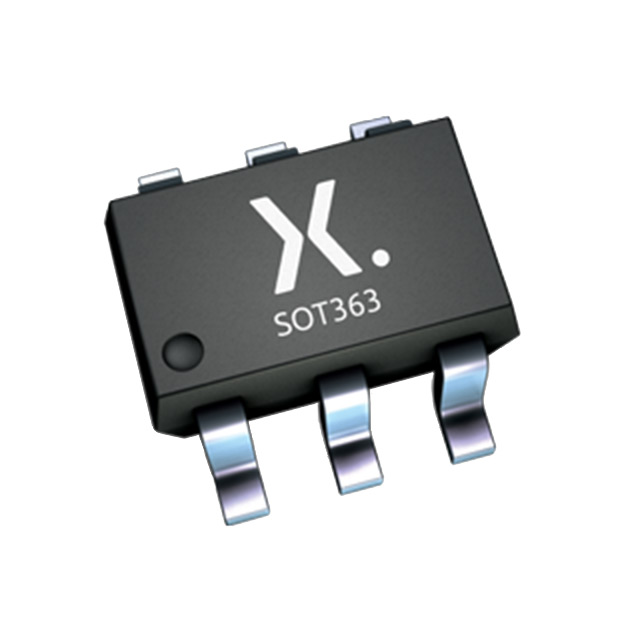

  • PUMD15-Q/SOT363/SC-88
  •  PUMD15-QF Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerNexperia
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity10000
  • DescriptionPre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA 230MHz, 180MHz 200mW Surface Mount 6-TSSOP
  • Package / Case6-TSSOP, SC-88, SOT-363
  • Mounting TypeSurface Mount
  • Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
  • Power - Max200mW
  • Current - Collector (Ic) (Max)100mA
  • Voltage - Collector Emitter Breakdown (Max)50V
  • Vce Saturation (Max) @ Ib, Ic150mV @ 500µA, 10mA
  • Current - Collector Cutoff (Max)1µA
  • DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 10mA, 5V
  • Frequency - Transition230MHz, 180MHz
  • Resistor - Base (R1)4.7kOhms
  • Resistor - Emitter Base (R2)4.7kOhms
  • Supplier Device Package6-TSSOP
  • GradeAutomotive
  • QualificationAEC-Q101

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PUMD15-QF from Nexperia only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
