  • Nexperia
  • BAW56S-QF
  • Discrete Semiconductor Products
  • DIODE ARRAY GP 90V 250MA 6TSSOP
  •  BAW56S-QF Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerNexperia
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity10000
  • DescriptionDiode Array 2 Pair Common Anode 90 V 250mA Surface Mount 6-TSSOP, SC-88, SOT-363

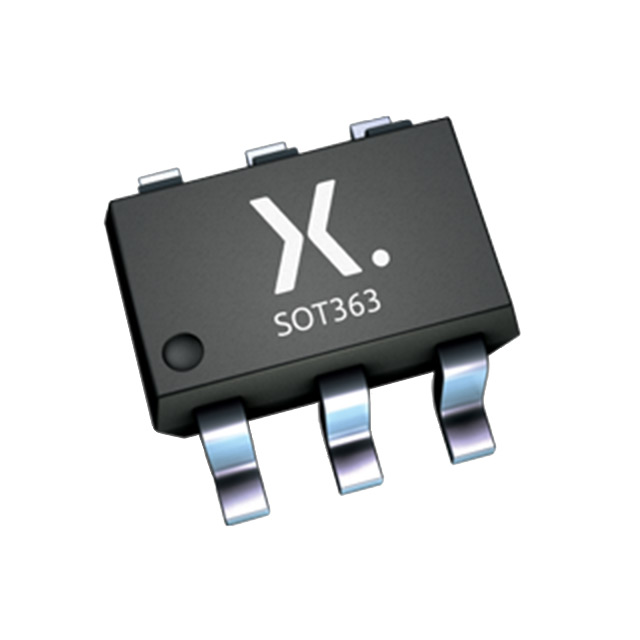

  • Package / Case6-TSSOP, SC-88, SOT-363
  • Mounting TypeSurface Mount
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)4 ns
  • TechnologyStandard
  • Diode Configuration2 Pair Common Anode
  • Current - Average Rectified (Io) (per Diode)250mA
  • Supplier Device Package6-TSSOP
  • Operating Temperature - Junction150°C
  • GradeAutomotive
  • Voltage - DC Reverse (Vr) (Max)90 V
  • Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
  • Current - Reverse Leakage @ Vr500 nA @ 80 V
  • QualificationAEC-Q101

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new BAW56S-QF from Nexperia only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
