  • NTE Electronics, Inc

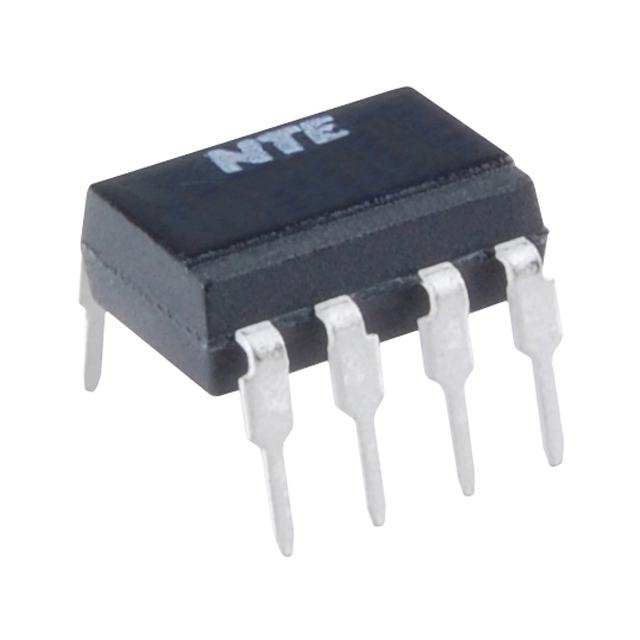

  • NTE3094
  • Isolators
  • OPTOCOUPLER/DUAL TTL OUT
  •  NTE3094 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerNTE Electronics, Inc
  • CategoryIsolators
  • PackagesBag
  • Standard Quantity1
  • DescriptionLogic Output Optoisolator 10Mbps Open Collector 3000VDC 2 Channel 500V/µs (Typ) CMTI 8-DIP
  • Package / Case8-DIP (0.300", 7.62mm)
  • Output TypeOpen Collector
  • Mounting TypeThrough Hole
  • Operating Temperature0°C ~ 70°C
  • Voltage - Supply4.5V ~ 5.5V
  • Voltage - Forward (Vf) (Typ)1.5V
  • Data Rate10Mbps
  • Input TypeDC
  • Voltage - Isolation3000VDC
  • Current - DC Forward (If) (Max)15mA
  • Inputs - Side 1/Side 22/0
  • Supplier Device Package8-DIP
  • Rise / Fall Time (Typ)25ns, 35ns
  • Common Mode Transient Immunity (Min)500V/µs (Typ)
  • Propagation Delay tpLH / tpHL (Max)75ns, 75ns
  • Number of Channels2
  • Current - Output / Channel16 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NTE3094 from NTE Electronics, Inc only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 18
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
