Product Specifications
  • AttributesAttribute Value
  • ManufacturerNVE Corporation
  • CategoryIsolators
  • PackagesTube
  • Standard Quantity50
  • DescriptionGeneral Purpose Digital Isolator 2500Vrms 3 Channel 2Mbps 30kV/µs CMTI 16-SOIC (0.154", 3.90mm Width)

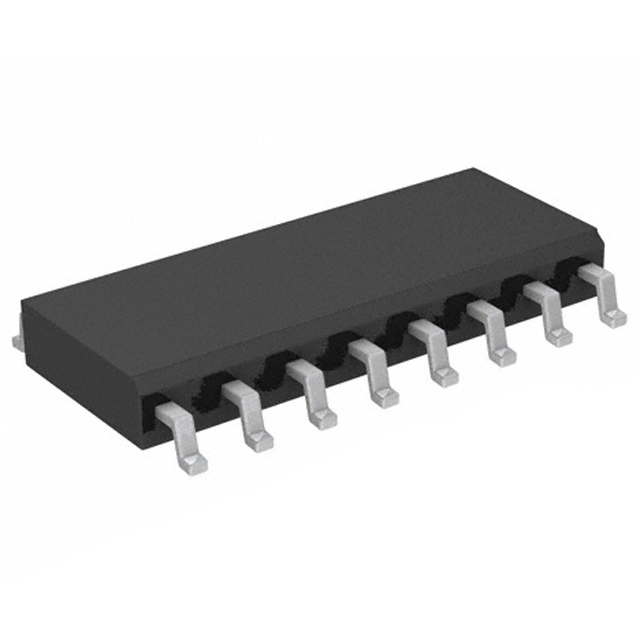

  • Package / Case16-SOIC (0.154", 3.90mm Width)
  • Mounting TypeSurface Mount
  • TypeGeneral Purpose
  • Operating Temperature-40°C ~ 85°C
  • Voltage - Supply3V ~ 5.5V
  • Data Rate2Mbps
  • TechnologyGMR (Giant Magnetoresistive)
  • Voltage - Isolation2500Vrms
  • Inputs - Side 1/Side 22/1
  • Supplier Device Package16-SOIC
  • Rise / Fall Time (Typ)1ns, 1ns
  • Common Mode Transient Immunity (Min)30kV/µs
  • Propagation Delay tpLH / tpHL (Max)25ns, 25ns
  • Isolated PowerNo
  • Channel TypeUnidirectional
  • Pulse Width Distortion (Max)10ns
  • Number of Channels3

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new IL 514-3E from NVE Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,863
Please send an RFQ for instant price and inventory.
