  • NVE Corporation
  • IL 485E
  • Isolators

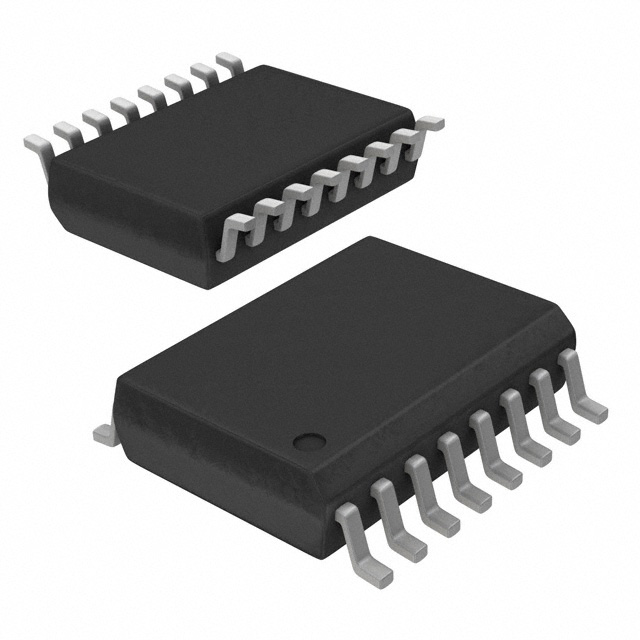

  • DGT ISO 2.5KV RS422/RS485 16SOIC
  •  IL 485E Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerNVE Corporation
  • CategoryIsolators
  • PackagesTube
  • Standard Quantity50
  • DescriptionRS422, RS485 Digital Isolator 2500Vrms 3 Channel 35Mbps 20kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
  • Package / Case16-SOIC (0.295", 7.50mm Width)
  • Mounting TypeSurface Mount
  • TypeRS422, RS485
  • Operating Temperature-40°C ~ 100°C
  • Voltage - Supply3V ~ 5.5V, 4.5V ~ 5.5V
  • Data Rate35Mbps
  • TechnologyGMR (Giant Magnetoresistive)
  • Voltage - Isolation2500Vrms
  • Inputs - Side 1/Side 22/1
  • Supplier Device Package16-SOIC
  • Rise / Fall Time (Typ)8ns, 8ns
  • Common Mode Transient Immunity (Min)20kV/µs
  • Propagation Delay tpLH / tpHL (Max)32ns, 32ns
  • Isolated PowerNo
  • Channel TypeUnidirectional
  • Number of Channels3

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new IL 485E from NVE Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 7,974
Please send an RFQ for instant price and inventory.
