Product Specifications
  • AttributesAttribute Value
  • ManufacturerPanasonic Electric Works
  • CategoryRelays
  • PackagesBulk
  • Standard Quantity50

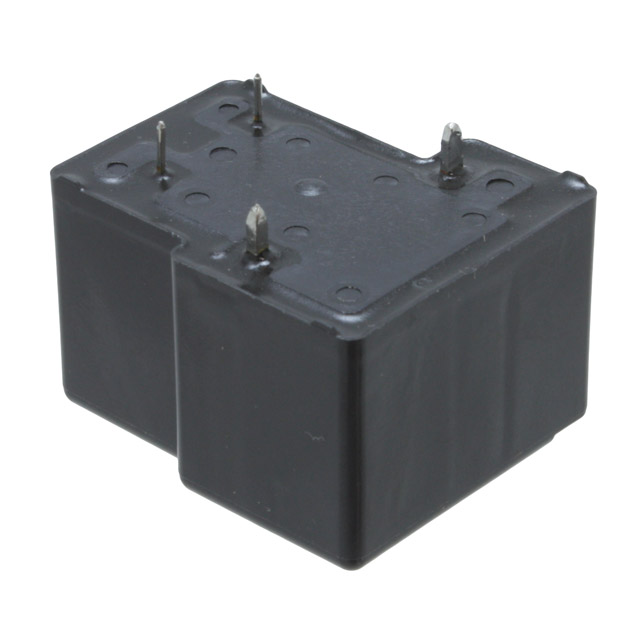

  • DescriptionGeneral Purpose Relay SPST-NO (1 Form A) 15VDC Coil Through Hole
  • Mounting TypeThrough Hole
  • Coil Voltage15VDC
  • Operating Temperature-55°C ~ 85°C
  • Termination StylePC Pin
  • Relay TypeGeneral Purpose
  • Coil Current53.3 mA
  • Coil TypeNon Latching
  • Seal RatingSealed - Fully
  • Contact MaterialSilver Tin Oxide (AgSnO)
  • Contact FormSPST-NO (1 Form A)
  • Contact Rating (Current)30 A
  • Switching Voltage277VAC - Max
  • Must Release Voltage1.5 VDC
  • Must Operate Voltage11.25 VDC
  • Operate Time20 ms
  • Release Time10 ms
  • Coil Resistance281 Ohms
  • Coil InsulationClass F
  • Load - Max Switching8310VA
