PANJIT

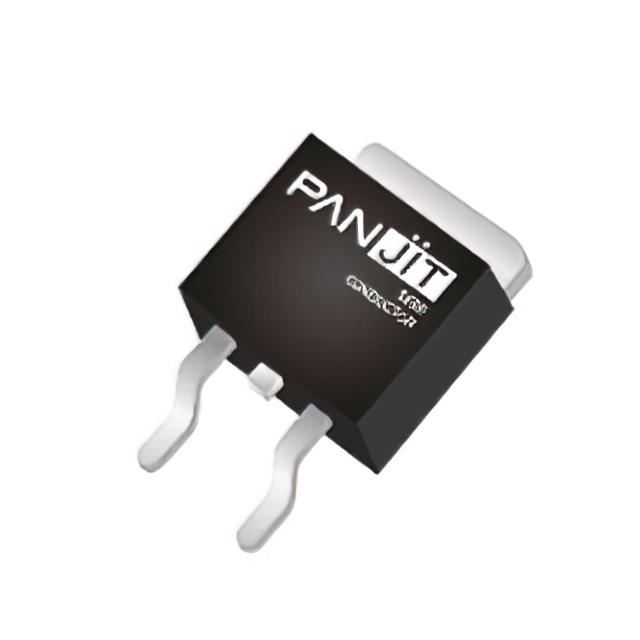

PJD90P03E-AU_L2_006A1
Discrete Semiconductor Products
30V P-CHANNEL ENHANCEMENT MODE M
PJD90P03E-AU_L2_006A1 Datasheet

Cost
Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerPANJIT
CategoryDiscrete Semiconductor Products
PackagesTape & Reel (TR)
Standard Quantity3000
DescriptionP-Channel 30 V 17A (Ta), 88A (Tc) 3W (Ta), 79W (Tc) Surface Mount TO-252AA
Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 175°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeP-Channel
Current - Continuous Drain (Id) @ 25°C17A (Ta), 88A (Tc)
Rds On (Max) @ Id, Vgs6.4mOhm @ 20A, 10V
Power Dissipation (Max)3W (Ta), 79W (Tc)
Vgs(th) (Max) @ Id2.5V @ 250µA
Supplier Device PackageTO-252AA
GradeAutomotive
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Vgs (Max)±25V
Drain to Source Voltage (Vdss)30 V
Gate Charge (Qg) (Max) @ Vgs68 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds3040 pF @ 25 V
QualificationAEC-Q101
