  • Power Integrations
  • LNK6776E
  • Integrated Circuits (ICs)
  • IC OFFLINE SWITCH FLYBACK 7ESIP
  •  LNK6776E Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerPower Integrations
  • CategoryIntegrated Circuits (ICs)
  • PackagesTube
  • Standard Quantity48
  • DescriptionConverter Offline Flyback Topology 120kHz ~ 136kHz eSIP-7C

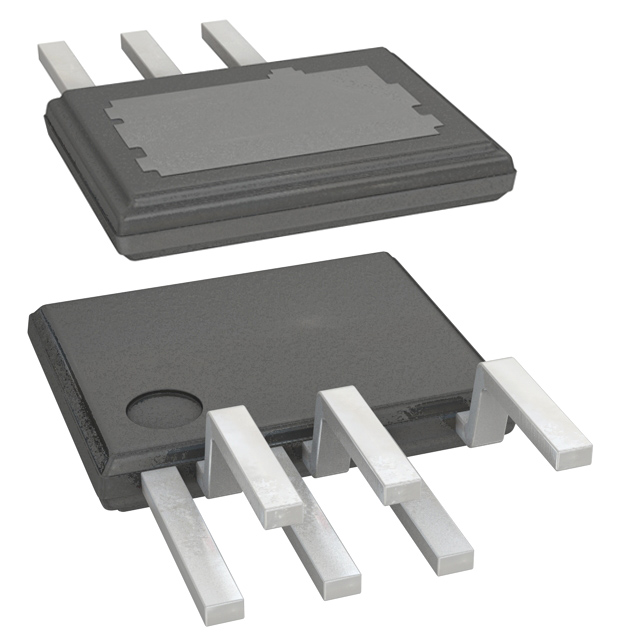

  • Package / Case7-SSIP, 6 Leads, Exposed Pad, Formed Leads
  • Mounting TypeThrough Hole
  • Operating Temperature-40°C ~ 150°C (TJ)
  • Duty Cycle64%
  • Frequency - Switching120kHz ~ 136kHz
  • Internal Switch(s)Yes
  • Voltage - Breakdown725V
  • Output IsolationIsolated
  • TopologyFlyback
  • Supplier Device PackageeSIP-7C
  • Fault ProtectionCurrent Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
  • Power (Watts)88 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new LNK6776E from Power Integrations only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
