  • PowerStor (Eaton)

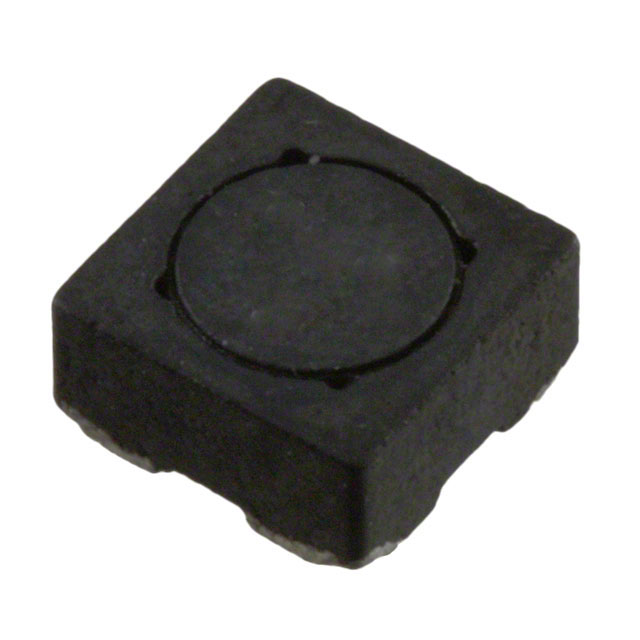

  • SDQ25-820-R
  • Inductors, Coils, Chokes
  • INDUCT ARRAY 2 COIL 81.61UH SMD
  •  SDQ25-820-R Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerPowerStor (Eaton)
  • CategoryInductors, Coils, Chokes
  • PackagesTape & Reel (TR)
  • Standard Quantity2900
  • DescriptionShielded 2 Coil Inductor Array 326.4 µH Inductance - Connected in Series 81.61 µH Inductance - Connected in Parallel 743.5mOhm DC Resistance (DCR) - Parallel 580 mA Nonstandard
  • Tolerance±20%
  • Package / CaseNonstandard
  • Size / Dimension0.205" L x 0.205" W (5.20mm x 5.20mm)
  • Mounting TypeSurface Mount
  • ShieldingShielded
  • Operating Temperature-40°C ~ 125°C
  • Height0.098" (2.50mm)
  • Number of Coils2
  • Inductance - Connected In Series326.4 µH
  • Inductance - Connected In Parallel81.61 µH
  • Current Rating - Parallel580 mA
  • Current Rating - Series290 mA
  • Current Saturation - Parallel446 mA
  • Current Saturation - Series223 mA
  • DC Resistance (DCR) - Parallel743.5mOhm
  • DC Resistance (DCR) - Series2.97Ohm
