  • PowerStor (Eaton)
  • SDQ12-6R2-R
  • Inductors, Coils, Chokes

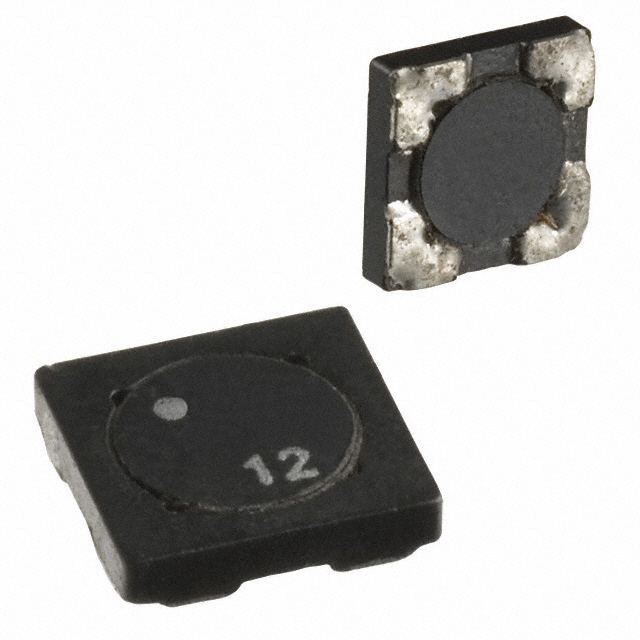

  • INDUCT ARRAY 2 COIL 6.25UH SMD
  •  SDQ12-6R2-R Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerPowerStor (Eaton)
  • CategoryInductors, Coils, Chokes
  • PackagesTape & Reel (TR)
  • Standard Quantity3800
  • DescriptionShielded 2 Coil Inductor Array 25 µH Inductance - Connected in Series 6.25 µH Inductance - Connected in Parallel 238.7mOhm DC Resistance (DCR) - Parallel 1.02 A Nonstandard
  • Tolerance±20%
  • Package / CaseNonstandard
  • Size / Dimension0.205" L x 0.205" W (5.20mm x 5.20mm)
  • Mounting TypeSurface Mount
  • ShieldingShielded
  • Operating Temperature-40°C ~ 125°C
  • Height0.047" (1.19mm)
  • Number of Coils2
  • Inductance - Connected In Series25 µH
  • Inductance - Connected In Parallel6.25 µH
  • Current Rating - Parallel1.02 A
  • Current Rating - Series512 mA
  • Current Saturation - Parallel1.22 A
  • Current Saturation - Series608 mA
  • DC Resistance (DCR) - Parallel238.7mOhm
  • DC Resistance (DCR) - Series954.8mOhm

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new SDQ12-6R2-R from PowerStor (Eaton) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
