  • Pulse Larsen Antenna
  • PF0553.153NL
  • Inductors, Coils, Chokes

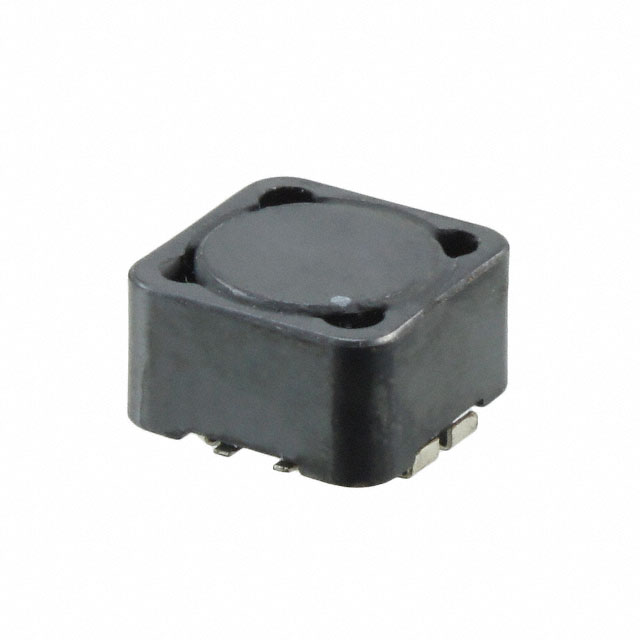

  • INDUCT ARRAY 2 COIL 14UH SMD
  •  PF0553.153NL Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerPulse Larsen Antenna
  • CategoryInductors, Coils, Chokes
  • PackagesTray
  • Standard Quantity60
  • DescriptionShielded 2 Coil Inductor Array 56 µH Inductance - Connected in Series 14 µH Inductance - Connected in Parallel 24mOhm Max DC Resistance (DCR) - Parallel 5 A Nonstandard
  • Tolerance±20%
  • Package / CaseNonstandard
  • Size / Dimension0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Mounting TypeSurface Mount
  • ShieldingShielded
  • Operating Temperature-40°C ~ 125°C
  • Height0.343" (8.71mm)
  • Number of Coils2
  • Inductance - Connected In Series56 µH
  • Inductance - Connected In Parallel14 µH
  • Current Rating - Parallel5 A
  • Current Rating - Series2.5 A
  • Current Saturation - Parallel9.6 A
  • Current Saturation - Series4.8 A
  • DC Resistance (DCR) - Parallel24mOhm Max
  • DC Resistance (DCR) - Series96mOhm Max

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PF0553.153NL from Pulse Larsen Antenna only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,545
Please send an RFQ for instant price and inventory.
