  • Pulse Larsen Antenna

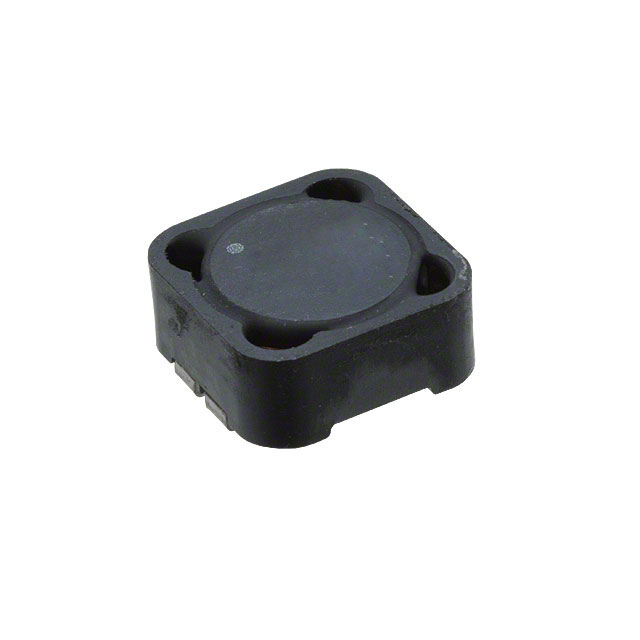

  • PF0552.824NLT
  • Inductors, Coils, Chokes
  • INDUCT ARRAY 2 COIL 830UH SMD
  •  PF0552.824NLT Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerPulse Larsen Antenna
  • CategoryInductors, Coils, Chokes
  • PackagesTape & Reel (TR)
  • Standard Quantity500
  • DescriptionShielded 2 Coil Inductor Array 3.3 mH Inductance - Connected in Series 830 µH Inductance - Connected in Parallel 1.4Ohm Max DC Resistance (DCR) - Parallel 690 mA Nonstandard
  • Tolerance±20%
  • Package / CaseNonstandard
  • Size / Dimension0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Mounting TypeSurface Mount
  • ShieldingShielded
  • Operating Temperature-40°C ~ 125°C
  • Height0.236" (6.00mm)
  • Number of Coils2
  • Inductance - Connected In Series3.3 mH
  • Inductance - Connected In Parallel830 µH
  • Current Rating - Parallel690 mA
  • Current Rating - Series340 mA
  • Current Saturation - Parallel780 mA
  • Current Saturation - Series390 mA
  • DC Resistance (DCR) - Parallel1.4Ohm Max
  • DC Resistance (DCR) - Series5.5Ohm Max

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PF0552.824NLT from Pulse Larsen Antenna only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
