  • ROHM Semiconductor
  • BAT54SHMT116
  • Discrete Semiconductor Products
  • DIODE ARR SCHOTT 30V 200MA SSD3
  •  BAT54SHMT116 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerROHM Semiconductor
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3000

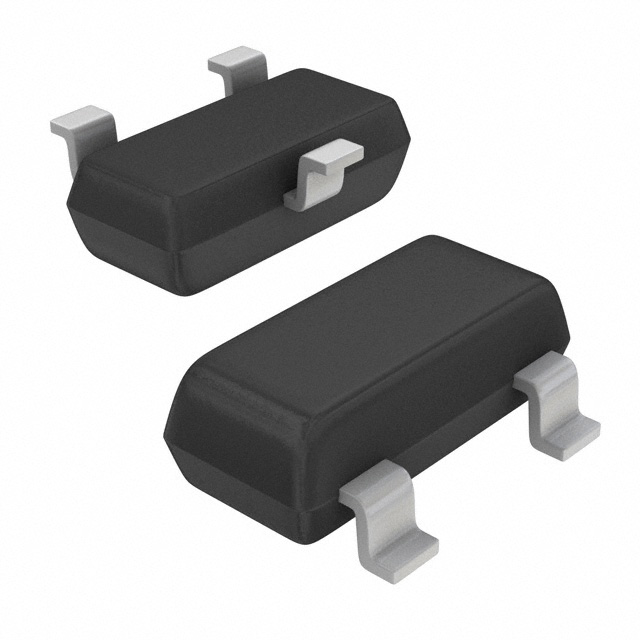

  • DescriptionDiode Array 1 Pair Series Connection 30 V 200mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
  • Package / CaseTO-236-3, SC-59, SOT-23-3
  • Mounting TypeSurface Mount
  • SpeedSmall Signal =< 200mA (Io), Any Speed
  • Reverse Recovery Time (trr)50 ns
  • TechnologySchottky
  • Diode Configuration1 Pair Series Connection
  • Current - Average Rectified (Io) (per Diode)200mA (DC)
  • Supplier Device PackageSSD3
  • Operating Temperature - Junction150°C (Max)
  • Voltage - DC Reverse (Vr) (Max)30 V
  • Voltage - Forward (Vf) (Max) @ If800 mV @ 100 mA
  • Current - Reverse Leakage @ Vr2 µA @ 25 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new BAT54SHMT116 from ROHM Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,288
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
