  • ROHM Semiconductor
  • BAW156HYT116
  • Discrete Semiconductor Products
  • DIODE ARRAY GP 80V 215MA SOT23
  •  BAW156HYT116 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerROHM Semiconductor
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3000

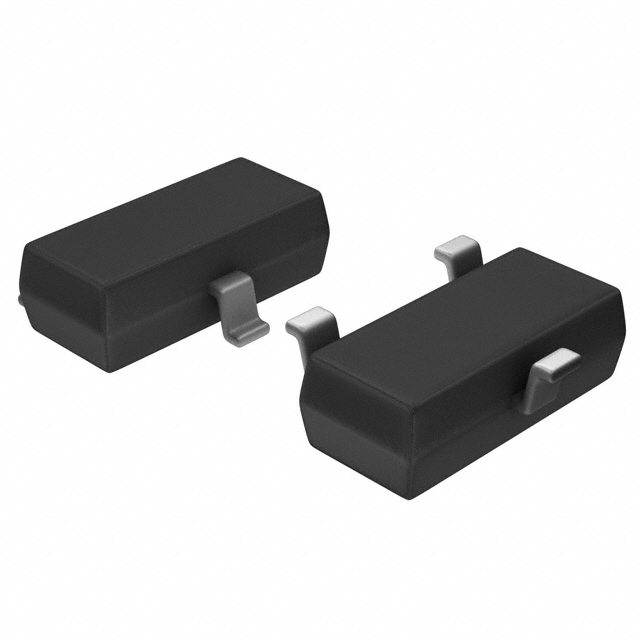

  • DescriptionDiode Array 1 Pair Common Anode 80 V 215mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
  • Package / CaseTO-236-3, SC-59, SOT-23-3
  • Mounting TypeSurface Mount
  • SpeedStandard Recovery >500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)3 µs
  • TechnologyStandard
  • Diode Configuration1 Pair Common Anode
  • Current - Average Rectified (Io) (per Diode)215mA (DC)
  • Supplier Device PackageSOT-23
  • Operating Temperature - Junction150°C
  • Voltage - DC Reverse (Vr) (Max)80 V
  • Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
  • Current - Reverse Leakage @ Vr5 nA @ 75 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new BAW156HYT116 from ROHM Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 8,953
Please send an RFQ for instant price and inventory.
