  • ROHM Semiconductor
  • RGT80TS65DGC11
  • Discrete Semiconductor Products

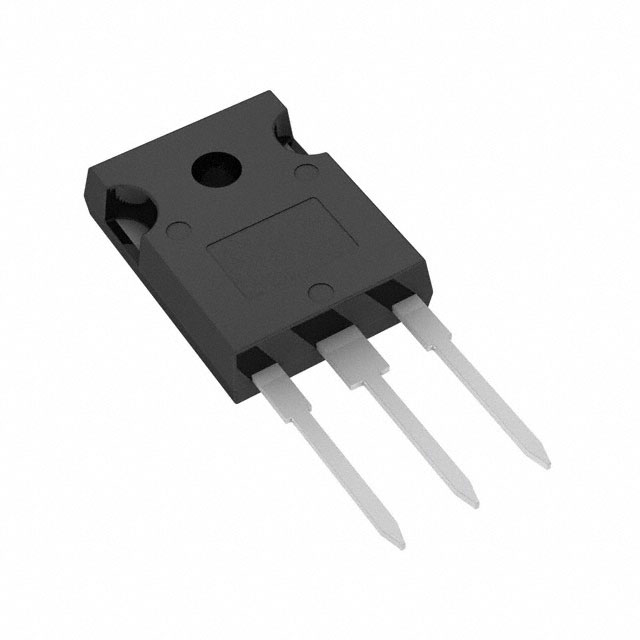

  • IGBT 650V 70A 234W TO-247N
  •  RGT80TS65DGC11 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerROHM Semiconductor
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity30
  • DescriptionIGBT Trench Field Stop 650 V 70 A 234 W Through Hole TO-247N
  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Operating Temperature-40°C ~ 175°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)58 ns
  • Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 40A
  • Supplier Device PackageTO-247N
  • IGBT TypeTrench Field Stop
  • Td (on/off) @ 25°C34ns/119ns
  • Test Condition400V, 40A, 10Ohm, 15V
  • Gate Charge79 nC
  • Current - Collector (Ic) (Max)70 A
  • Voltage - Collector Emitter Breakdown (Max)650 V
  • Current - Collector Pulsed (Icm)120 A
  • Power - Max234 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new RGT80TS65DGC11 from ROHM Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 5
Please send an RFQ for instant price and inventory.
