  • Roving Networks (Microchip Technology)

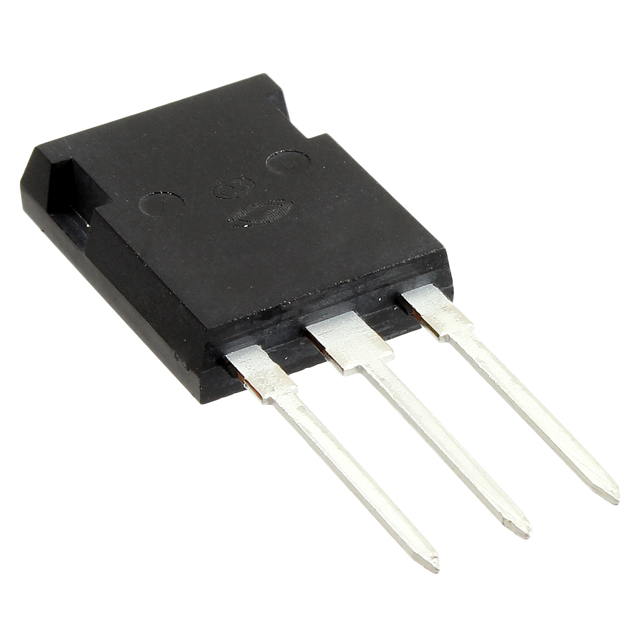

  • APT35GP120BG
  • Discrete Semiconductor Products
  • IGBT PT 1200V 96A TO247
  •  APT35GP120BG Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerRoving Networks (Microchip Technology)
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity30
  • DescriptionIGBT PT 1200 V 96 A 543 W Through Hole TO-247 [B]
  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Input TypeStandard
  • Vce(on) (Max) @ Vge, Ic3.9V @ 15V, 35A
  • Supplier Device PackageTO-247 [B]
  • IGBT TypePT
  • Td (on/off) @ 25°C16ns/94ns
  • Switching Energy750µJ (on), 680µJ (off)
  • Test Condition600V, 35A, 5Ohm, 15V
  • Gate Charge150 nC
  • Current - Collector (Ic) (Max)96 A
  • Voltage - Collector Emitter Breakdown (Max)1200 V
  • Current - Collector Pulsed (Icm)140 A
  • Power - Max543 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new APT35GP120BG from Roving Networks (Microchip Technology) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
