  • Roving Networks (Microchip Technology)
  • JANTX1N4148UBCD
  • Discrete Semiconductor Products
  • DIODE ARRAY GP 75V 1A UBC
  •  JANTX1N4148UBCD Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerRoving Networks (Microchip Technology)
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity1

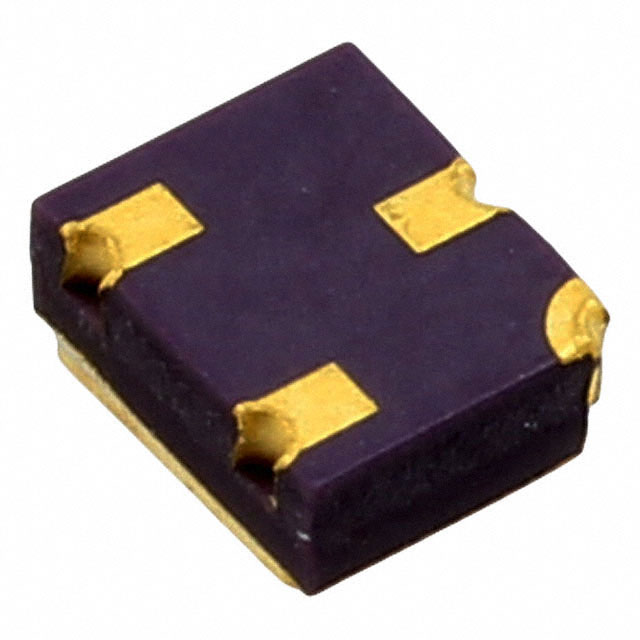

  • DescriptionDiode Array 1 Pair Series Connection 75 V 1A Surface Mount 3-SMD, No Lead
  • Package / Case3-SMD, No Lead
  • Mounting TypeSurface Mount
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)5 ns
  • TechnologyStandard
  • Diode Configuration1 Pair Series Connection
  • Current - Average Rectified (Io) (per Diode)1A
  • Supplier Device PackageUBC
  • Operating Temperature - Junction-65°C ~ 200°C
  • GradeMilitary
  • Voltage - DC Reverse (Vr) (Max)75 V
  • Voltage - Forward (Vf) (Max) @ If800 mV @ 100 mA
  • Current - Reverse Leakage @ Vr25 nA @ 20 V
  • QualificationMIL-PRF-19500/116

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new JANTX1N4148UBCD from Roving Networks (Microchip Technology) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
