  • Roving Networks (Microchip Technology)
  • JANS1N5814
  • Discrete Semiconductor Products
  • DIODE GEN PURP 100V 20A DO203AA
  •  JANS1N5814 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerRoving Networks (Microchip Technology)
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity1

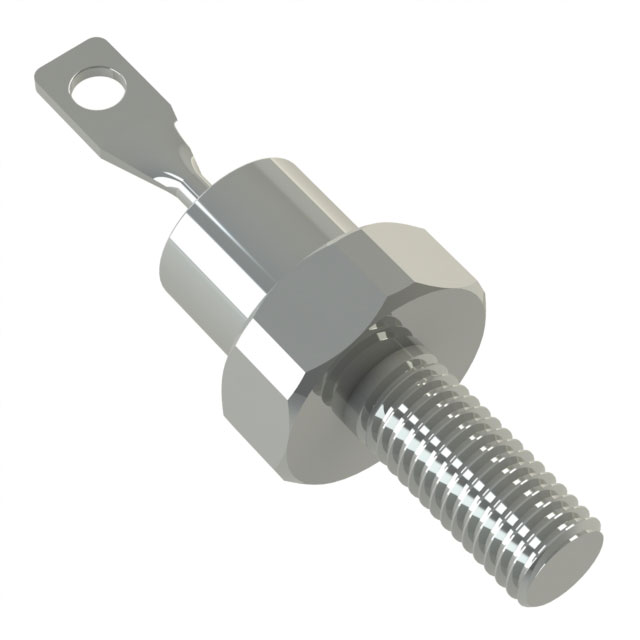

  • DescriptionDiode 100 V 20A Stud Mount DO-203AA (DO-4)
  • Package / CaseDO-203AA, DO-4, Stud
  • Mounting TypeStud Mount
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)35 ns
  • TechnologyStandard
  • Capacitance @ Vr, F300pF @ 10V, 1MHz
  • Current - Average Rectified (Io)20A
  • Supplier Device PackageDO-203AA (DO-4)
  • Operating Temperature - Junction-65°C ~ 175°C
  • GradeMilitary
  • Voltage - DC Reverse (Vr) (Max)100 V
  • Voltage - Forward (Vf) (Max) @ If950 mV @ 20 A
  • Current - Reverse Leakage @ Vr10 µA @ 100 V
  • QualificationMIL-PRF-19500/478

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new JANS1N5814 from Roving Networks (Microchip Technology) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
