Product Specifications
  • AttributesAttribute Value
  • ManufacturerSamtec, Inc.
  • CategoryConnectors, Interconnects
  • PackagesTube
  • Standard Quantity14

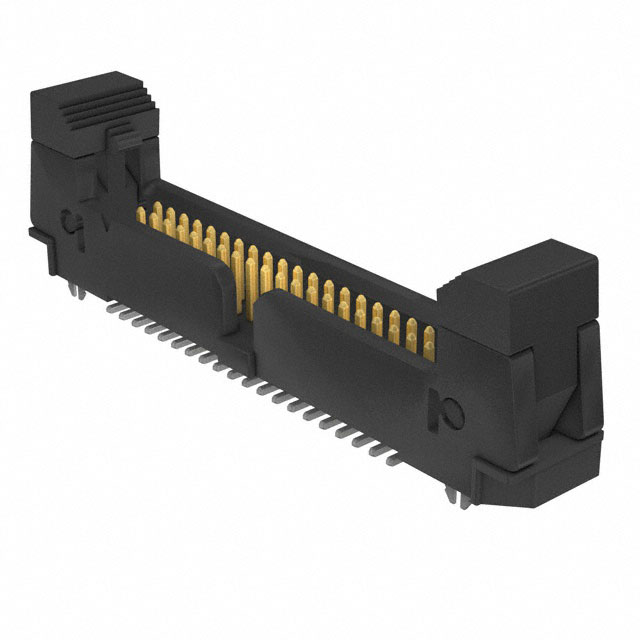

  • DescriptionConnector Header Surface Mount 40 position 0.050" (1.27mm)
  • FeaturesBoard Lock, Keying Slot, Pick and Place
  • Connector TypeHeader
  • Current Rating (Amps)1.75A
  • Mounting TypeSurface Mount
  • Number of Positions40
  • Number of Rows2
  • StyleBoard to Cable/Wire
  • Operating Temperature-55°C ~ 125°C
  • Contact TypeMale Pin
  • Fastening TypeLatch Lock/Eject Hooks
  • Number of Positions LoadedAll
  • TerminationSolder
  • Contact MaterialPhosphor Bronze
  • Insulation ColorBlack
  • Pitch - Mating0.050" (1.27mm)
  • Contact Finish - MatingGold
  • Contact Finish Thickness - Mating10.0µin (0.25µm)
  • Contact Finish - PostTin
  • Contact ShapeSquare
  • Insulation Height0.325" (8.25mm)
  • ShroudingShrouded - 4 Wall
  • Insulation MaterialLiquid Crystal Polymer (LCP), Glass Filled
  • Row Spacing - Mating0.050" (1.27mm)
  • Contact Length - Mating0.120" (3.05mm)

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new EHF-120-01-L-D-SM-LC-P from Samtec, Inc. only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 120
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
