NTMTS1D5N08H Sanyo Semiconductor/onsemi Order From Hard Find Electronics

Electronic Components

At Hard Find Electronics Tech, we source hard-to-find electronic components and manage supply, cost reduction, excess inventory management, and more.

Sanyo Semiconductor/onsemi

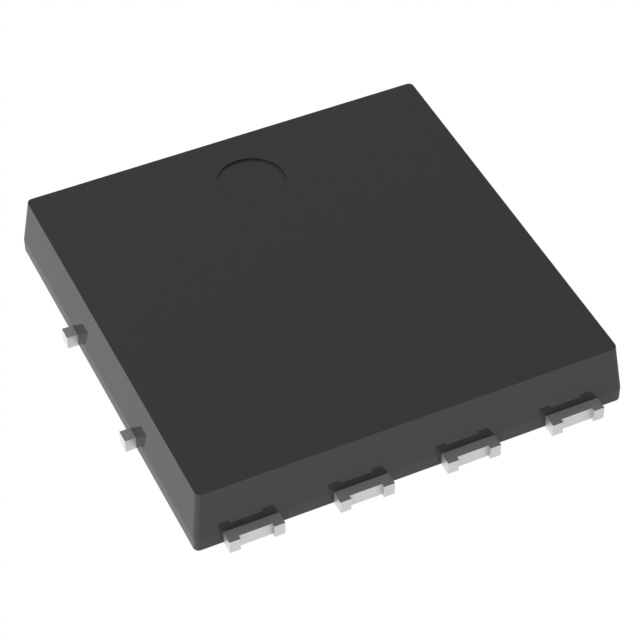

NTMTS1D5N08H
Discrete Semiconductor Products
T8-80V IN PQFN88 FOR INDU
NTMTS1D5N08H Datasheet

Cost Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerSanyo Semiconductor/onsemi
CategoryDiscrete Semiconductor Products
PackagesTape & Reel (TR)
Standard Quantity3000
DescriptionN-Channel 80 V 36A (Ta), 255A (Tc) 4.2W (Ta), 208W (Tc) Surface Mount 8-DFNW (8.3x8.4)
Package / Case8-PowerTDFN
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 150°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeN-Channel
Current - Continuous Drain (Id) @ 25°C36A (Ta), 255A (Tc)
Rds On (Max) @ Id, Vgs1.5mOhm @ 90A, 10V
Power Dissipation (Max)4.2W (Ta), 208W (Tc)
Vgs(th) (Max) @ Id4V @ 490µA
Supplier Device Package8-DFNW (8.3x8.4)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Vgs (Max)±20V
Drain to Source Voltage (Vdss)80 V
Gate Charge (Qg) (Max) @ Vgs125 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds8220 pF @ 40 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NTMTS1D5N08H from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide

RFQ

Source at least two reliable suppliers
QUOTE

Information checking available/price/condition
QC PROCESS

3-Step Quality Control and Professional Third-Party Test
SHIPMENT

FedEx, DHL, UPS, TNT

In Stock: 3,000

Please send an RFQ for instant price and inventory.

Fast Shipping

QUANTITY

Multiples of 1
