  • Sanyo Semiconductor/onsemi
  • HGTP12N60C3
  • Discrete Semiconductor Products

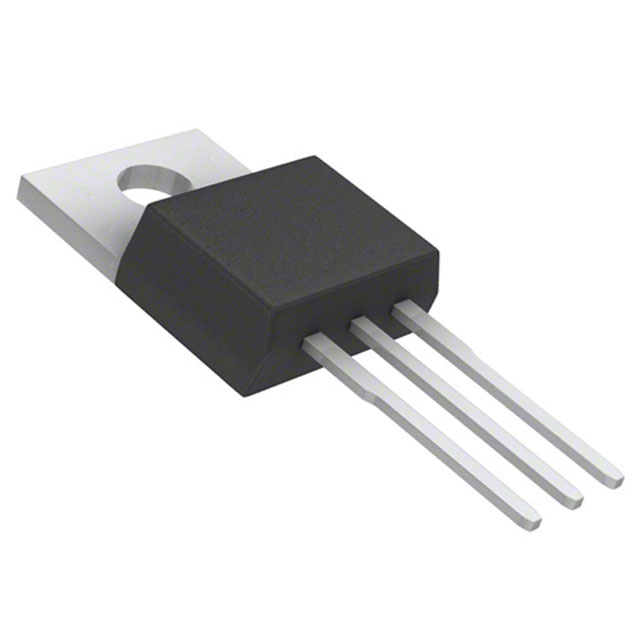

  • IGBT 600V 24A 104W TO220AB
  •  HGTP12N60C3 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity400
  • DescriptionIGBT 600 V 24 A 104 W Through Hole TO-220-3
  • Package / CaseTO-220-3
  • Mounting TypeThrough Hole
  • Operating Temperature-40°C ~ 150°C (TJ)
  • Input TypeStandard
  • Vce(on) (Max) @ Vge, Ic2V @ 15V, 12A
  • Supplier Device PackageTO-220-3
  • Switching Energy380µJ (on), 900µJ (off)
  • Gate Charge48 nC
  • Current - Collector (Ic) (Max)24 A
  • Voltage - Collector Emitter Breakdown (Max)600 V
  • Current - Collector Pulsed (Icm)96 A
  • Power - Max104 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new HGTP12N60C3 from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
