  • Sanyo Semiconductor/onsemi
  • NXH100B120H3Q0PTG
  • Discrete Semiconductor Products

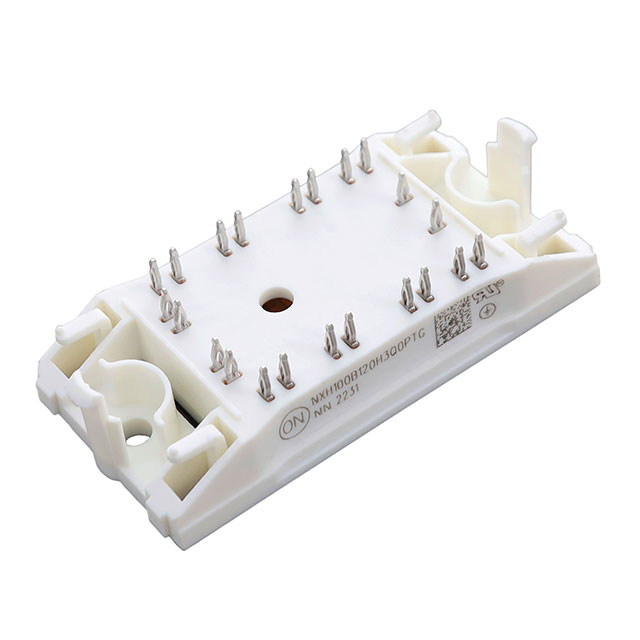

  • IGBT MODULE 1200V 50A 186W 22PIM
  •  NXH100B120H3Q0PTG Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTray
  • Standard Quantity24
  • DescriptionIGBT Module Trench Field Stop 2 Independent 1200 V 50 A 186 W Chassis Mount 22-PIM (55x32.5)
  • Package / CaseModule
  • Mounting TypeChassis Mount
  • InputStandard
  • Configuration2 Independent
  • Operating Temperature-40°C ~ 150°C (TJ)
  • Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 50A
  • NTC ThermistorNo
  • Supplier Device Package22-PIM (55x32.5)
  • IGBT TypeTrench Field Stop
  • Current - Collector (Ic) (Max)50 A
  • Voltage - Collector Emitter Breakdown (Max)1200 V
  • Power - Max186 W
  • Current - Collector Cutoff (Max)200 µA
  • Input Capacitance (Cies) @ Vce9.075 nF @ 20 V
