  • Sanyo Semiconductor/onsemi
  • FGPF7N60RUFDTU
  • Discrete Semiconductor Products

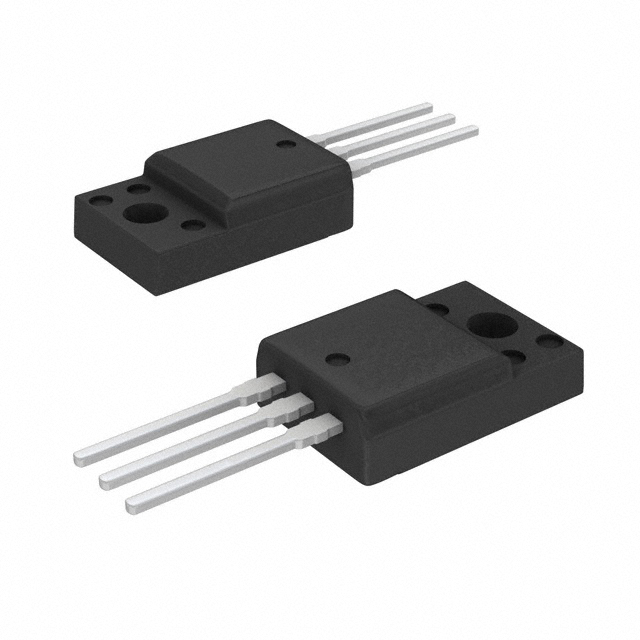

  • IGBT 600V 14A 41W TO220F
  •  FGPF7N60RUFDTU Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity50
  • DescriptionIGBT 600 V 14 A 41 W Through Hole TO-220F-3
  • Package / CaseTO-220-3 Full Pack
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)65 ns
  • Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 7A
  • Supplier Device PackageTO-220F-3
  • Td (on/off) @ 25°C60ns/60ns
  • Switching Energy230µJ (on), 100µJ (off)
  • Test Condition300V, 7A, 30Ohm, 15V
  • Gate Charge24 nC
  • Current - Collector (Ic) (Max)14 A
  • Voltage - Collector Emitter Breakdown (Max)600 V
  • Current - Collector Pulsed (Icm)21 A
  • Power - Max41 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new FGPF7N60RUFDTU from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
