  • Sanyo Semiconductor/onsemi
  • 2SD1145G-AE
  • Discrete Semiconductor Products
  • BIP NPN 5A 20V
  •  2SD1145G-AE Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity1402
  • DescriptionBipolar (BJT) Transistor NPN 20 V 5 A 120MHz 900 mW Through Hole 3-MP

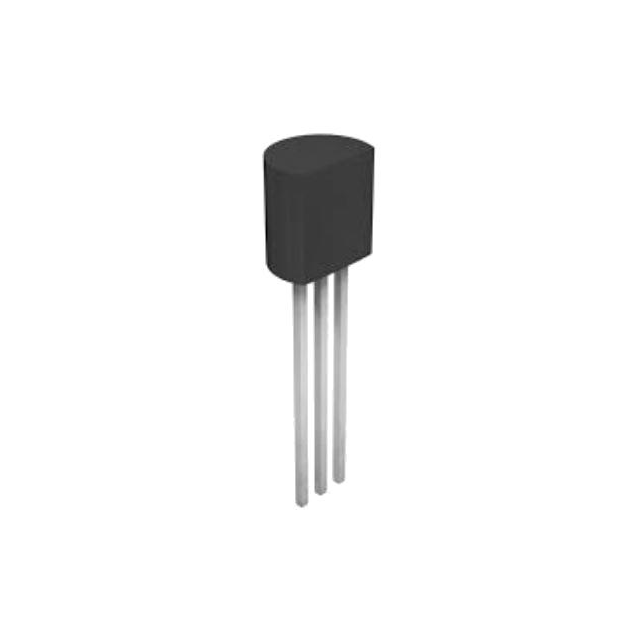

  • Package / CaseTO-226-3, TO-92-3 Long Body
  • Mounting TypeThrough Hole
  • Transistor TypeNPN
  • Operating Temperature150°C (TJ)
  • Vce Saturation (Max) @ Ib, Ic500mV @ 60mA, 3A
  • Current - Collector Cutoff (Max)1µA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce280 @ 500mA, 2V
  • Frequency - Transition120MHz
  • Supplier Device Package3-MP
  • Current - Collector (Ic) (Max)5 A
  • Voltage - Collector Emitter Breakdown (Max)20 V
  • Power - Max900 mW

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 2SD1145G-AE from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 5,000
Please send an RFQ for instant price and inventory.
