Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • Sanyo Semiconductor/onsemi
  • BAW56WT1H
  • Discrete Semiconductor Products
  • DIODE ARRAY GP 70V 200MA SC70-3
  •  BAW56WT1H Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity11539
  • DescriptionDiode Array 1 Pair Common Anode 70 V 200mA (DC) Surface Mount SC-70, SOT-323

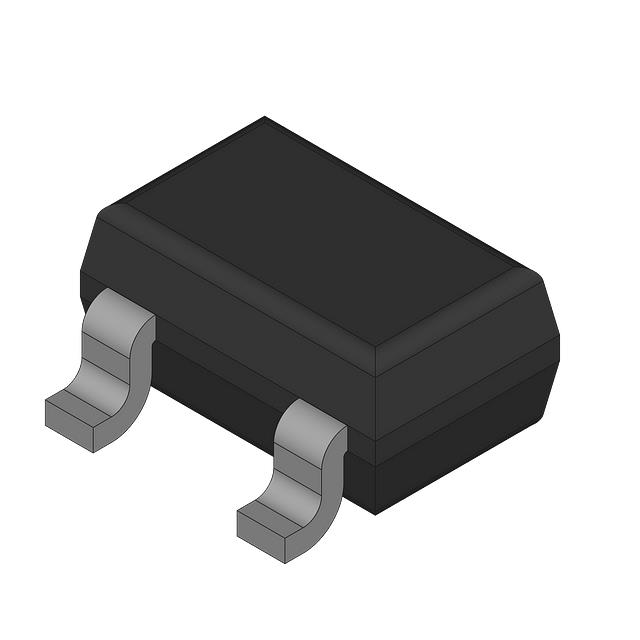

  • Package / CaseSC-70, SOT-323
  • Mounting TypeSurface Mount
  • SpeedSmall Signal =< 200mA (Io), Any Speed
  • Reverse Recovery Time (trr)6 ns
  • TechnologyStandard
  • Diode Configuration1 Pair Common Anode
  • Current - Average Rectified (Io) (per Diode)200mA (DC)
  • Supplier Device PackageSC-70-3 (SOT323)
  • Operating Temperature - Junction-55°C ~ 150°C
  • Voltage - DC Reverse (Vr) (Max)70 V
  • Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
  • Current - Reverse Leakage @ Vr2.5 µA @ 70 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new BAW56WT1H from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 366,000
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
