Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTray
  • Standard Quantity1

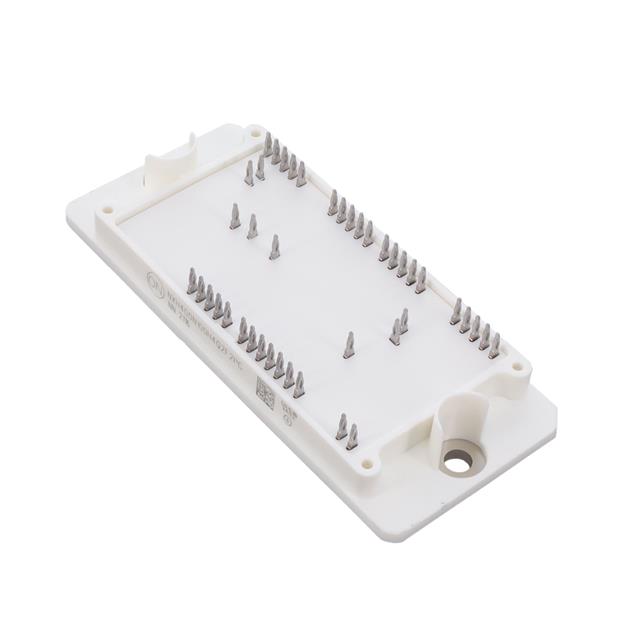

  • DescriptionIGBT Module Trench Field Stop Three Level Inverter 1000 V 303 A 592 W Chassis Mount 42-PIM/Q2PACK (93x47)
  • Package / CaseModule
  • Mounting TypeChassis Mount
  • InputStandard
  • ConfigurationThree Level Inverter
  • Operating Temperature-40°C ~ 150°C (TJ)
  • Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 375A
  • NTC ThermistorYes
  • Supplier Device Package42-PIM/Q2PACK (93x47)
  • IGBT TypeTrench Field Stop
  • Current - Collector (Ic) (Max)303 A
  • Voltage - Collector Emitter Breakdown (Max)1000 V
  • Power - Max592 W
  • Current - Collector Cutoff (Max)1 mA
  • Input Capacitance (Cies) @ Vce24.146 nF @ 20 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NXH350N100H4Q2F2SG from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
