  • Sanyo Semiconductor/onsemi
  • NGB8206NG
  • Discrete Semiconductor Products

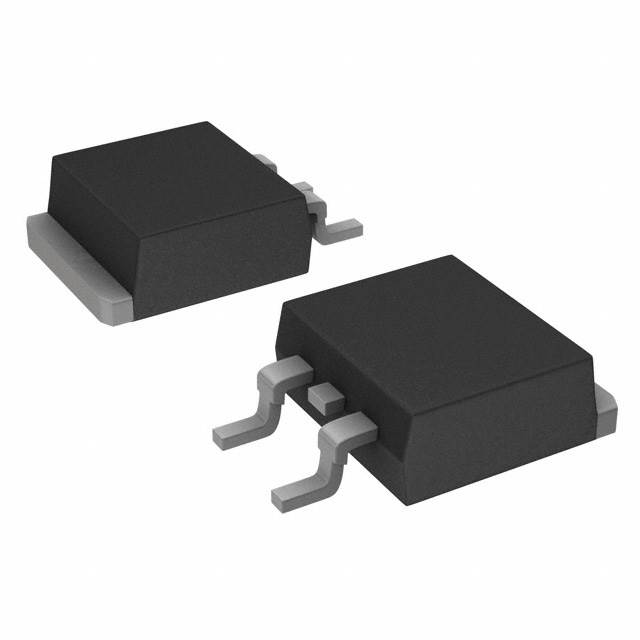

  • IGBT 390V 20A 150W D2PAK
  •  NGB8206NG Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity50
  • DescriptionIGBT 390 V 20 A 150 W Surface Mount D2PAK
  • Package / CaseTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 175°C (TJ)
  • Input TypeLogic
  • Vce(on) (Max) @ Vge, Ic1.9V @ 4.5V, 20A
  • Supplier Device PackageD2PAK
  • Td (on/off) @ 25°C-/5µs
  • Test Condition300V, 9A, 1kOhm, 5V
  • Current - Collector (Ic) (Max)20 A
  • Voltage - Collector Emitter Breakdown (Max)390 V
  • Current - Collector Pulsed (Icm)50 A
  • Power - Max150 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NGB8206NG from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
