  • Sanyo Semiconductor/onsemi
  • NTLJD3115PT1G
  • Discrete Semiconductor Products
  • MOSFET 2P-CH 20V 2.3A 6WDFN
  •  NTLJD3115PT1G Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionMosfet Array 20V 2.3A 710mW Surface Mount 6-WDFN (2x2)

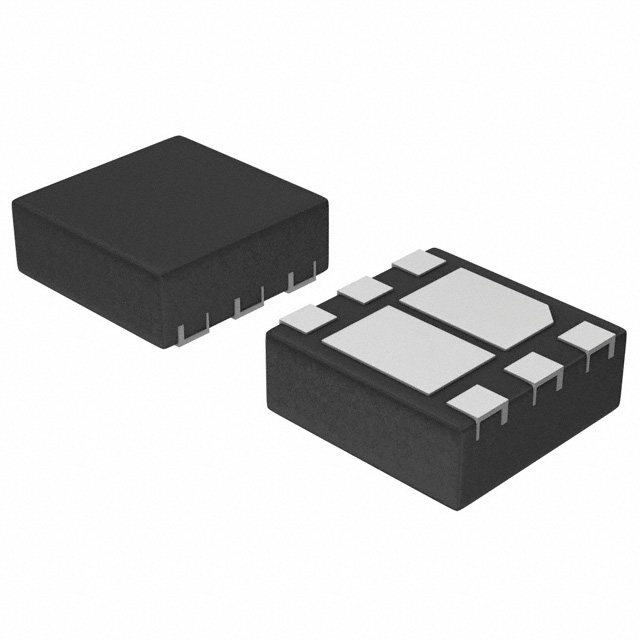

  • Package / Case6-WDFN Exposed Pad
  • Mounting TypeSurface Mount
  • Configuration2 P-Channel (Dual)
  • Operating Temperature-55°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • Power - Max710mW
  • Drain to Source Voltage (Vdss)20V
  • Current - Continuous Drain (Id) @ 25°C2.3A
  • Input Capacitance (Ciss) (Max) @ Vds531pF @ 10V
  • Rds On (Max) @ Id, Vgs100mOhm @ 2A, 4.5V
  • Gate Charge (Qg) (Max) @ Vgs6.2nC @ 4.5V
  • FET FeatureLogic Level Gate
  • Vgs(th) (Max) @ Id1V @ 250µA
  • Supplier Device Package6-WDFN (2x2)

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NTLJD3115PT1G from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 14,252
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
