  • Sanyo Semiconductor/onsemi
  • NTST40120CTH
  • Discrete Semiconductor Products

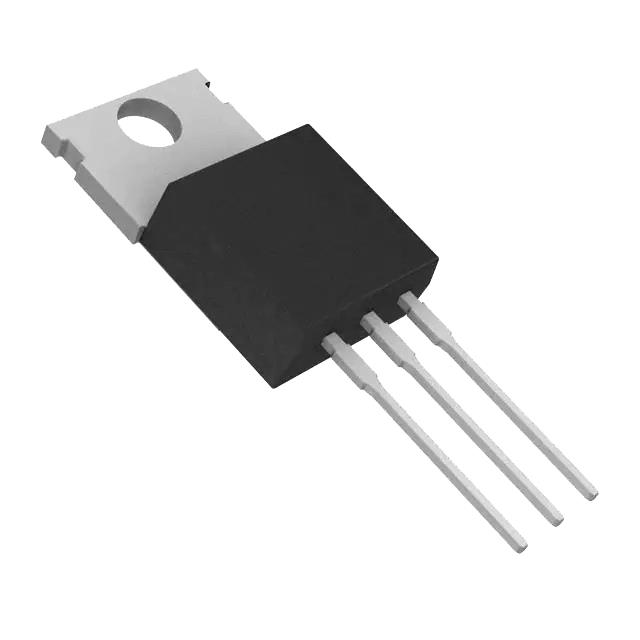

  • DIODE ARR SCHOTT 120V 20A TO220
  •  NTST40120CTH Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity293
  • DescriptionDiode Array 1 Pair Common Cathode 120 V 20A Through Hole TO-220-3
  • Package / CaseTO-220-3
  • Mounting TypeThrough Hole
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • TechnologySchottky
  • Diode Configuration1 Pair Common Cathode
  • Current - Average Rectified (Io) (per Diode)20A
  • Supplier Device PackageTO-220
  • Operating Temperature - Junction-40°C ~ 150°C
  • Voltage - DC Reverse (Vr) (Max)120 V
  • Voltage - Forward (Vf) (Max) @ If910 mV @ 20 A
  • Current - Reverse Leakage @ Vr500 µA @ 120 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NTST40120CTH from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 174,300
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
