  • Sanyo Semiconductor/onsemi

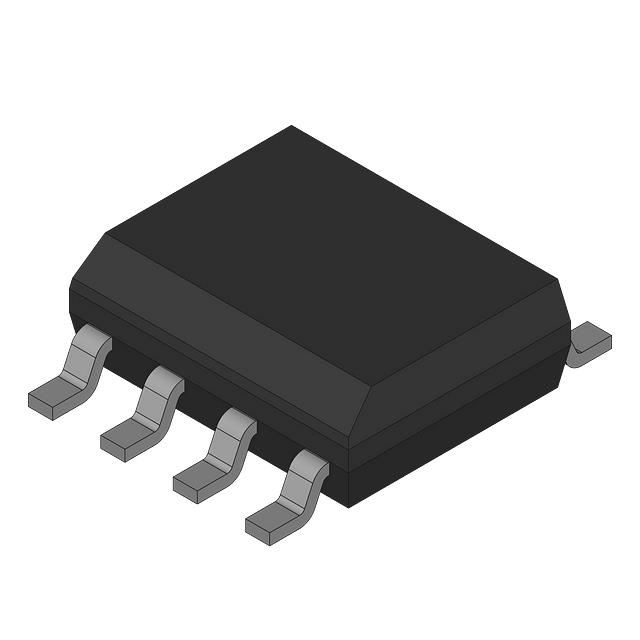

  • FDFS2P753Z
  • Discrete Semiconductor Products
  • POWER FIELD-EFFECT TRANSISTOR, 3
  •  FDFS2P753Z Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity1025
  • DescriptionP-Channel 30 V 3A (Ta) 1.6W (Ta) Surface Mount 8-SOIC
  • Package / Case8-SOIC (0.154", 3.90mm Width)
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeP-Channel
  • Current - Continuous Drain (Id) @ 25°C3A (Ta)
  • Rds On (Max) @ Id, Vgs115mOhm @ 3A, 10V
  • FET FeatureSchottky Diode (Isolated)
  • Power Dissipation (Max)1.6W (Ta)
  • Vgs(th) (Max) @ Id3V @ 250µA
  • Supplier Device Package8-SOIC
  • Vgs (Max)±25V
  • Drain to Source Voltage (Vdss)30 V
  • Gate Charge (Qg) (Max) @ Vgs9.3 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds455 pF @ 10 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new FDFS2P753Z from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 5,825
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
