• Sanyo Semiconductor/onsemi

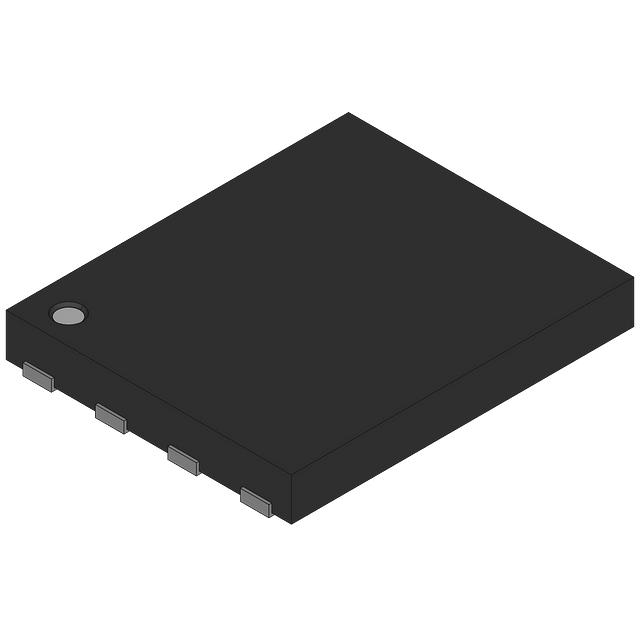

• FDMS3006SDC
• Discrete Semiconductor Products
• POWER FIELD-EFFECT TRANSISTOR, 3
•  FDMS3006SDC Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerSanyo Semiconductor/onsemi
• CategoryDiscrete Semiconductor Products
• PackagesBulk
• Standard Quantity210
• DescriptionN-Channel 30 V 34A (Ta) 3.3W (Ta), 89W (Tc) Surface Mount Dual Cool™56
• Package / Case8-PowerTDFN
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C34A (Ta)
• Rds On (Max) @ Id, Vgs1.9mOhm @ 30A, 10V
• Power Dissipation (Max)3.3W (Ta), 89W (Tc)
• Vgs(th) (Max) @ Id3V @ 1mA
• Supplier Device PackageDual Cool™56
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)30 V
• Gate Charge (Qg) (Max) @ Vgs80 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds5725 pF @ 15 V
